Diverse Zusatzkabelsätze for BMW 7 Series E32 750iL (1990)

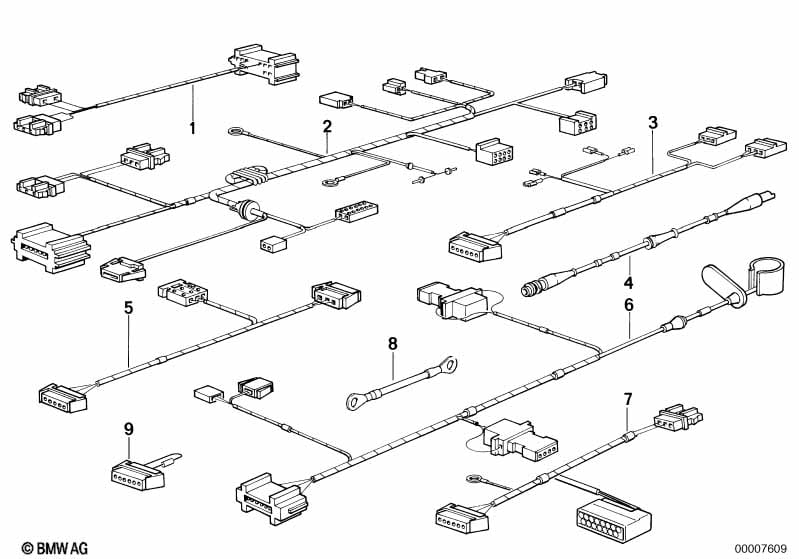

This Diverse Zusatzkabelsätze technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabelsatz Standlüftung | 1 | 61121379505 | Entfallen | Shop at ECS Tuning | |||||
| 02 | Kabelsatz Zusatzheizung/Standlüftung | 1 | 09/1989 | 09/1992 | 61128350111 | $291.28 | Entfallen | Shop at ECS Tuning | ||
| 03 | Kabelsatz Gepäckraum-Kennzeichenleuchte | 1 | 61121378845 | $30.30 | Entfallen | Shop at ECS Tuning | ||||
| 04 | Kabelsatz Bremsbelagverschleissanzeige | 2 | 61121379816 | $30.43 | Entfallen | Shop at ECS Tuning | ||||
| 05 | Kabelsatz Elektr.Schiebehebedach | 1 | 61121379475 | $47.20 | Entfallen | Shop at ECS Tuning | ||||
| 06 | Kabelsatz Dauerplus Anhängevorrichtung | 1 | 61121388346 | Shop at ECS Tuning | ||||||
| 06 | Kabelsatz Anhängerkupplung | 1 | 09/1988 | 61121388341 | Entfallen | Shop at ECS Tuning | ||||
| 07 | Kabelsatz Servoschloss Heckklappe | 1 | 61121390619 | $112.83 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Kabelsatz Spannungsversorgung | B (+) | 1 | 61121382838 | $5.78 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Xenon-Licht Hella |
=Ja |
|||||||||
| 08 | Kabelsatz Spannungsversorgung | B (+) | 1 | 61128365462 | Entfallen | Shop at ECS Tuning | ||||
| 09 | Überbrückungsstecker | 1 | 61131382837 | $6.03 | Entfallen | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
