Rep.-Kabel Airbag for BMW MINI R56 Cooper (2007)

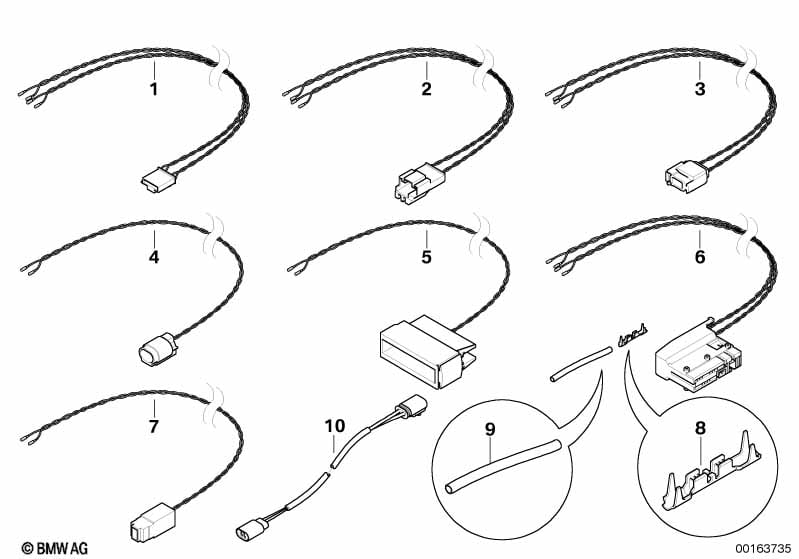

This Rep.-Kabel Airbag technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Achtung! Reparaturanleitung "Reparieren von Airbagleitungen" (REP-ALG-RAE3661-HINW19 - V.5) beachten. |
|||||||||
| 01 | Rep.-Kabel Fahrerairbag/Steuergerät | 1 | 03/2008 | 61129148959 | $14.92 | Entfallen | Shop at ECS Tuning | |||
| 02 | Rep.-Kabel Beifahrerairbag/Steuergerät | 1 | 03/2008 | 61129149110 | $18.55 | Shop at ECS Tuning | ||||
| 03 | Rep.-Kabel Sensor B-Säule/ Steuergerät | 2 | 03/2008 | 61129148929 | $21.95 | Entfallen | Shop at ECS Tuning | |||
| 06 | Rep.-Kabel Sitzstecker/Steuergerät | 2 | 61129130172 | $18.55 | Shop at ECS Tuning | |||||
| auch passend für Gurtstrammer |
||||||||||
| 07 | Rep.-Kabel Kopfairbag /Steuergerät | 2 | 03/2008 | 61129148955 | $16.07 | Shop at ECS Tuning | ||||
| 08 | Stossverbinder | 0.2-0.5 MM² | X | 61138353746 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Schrumpfschlauch | 6X45MM | X | 61135A4F528 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
