Hauptkabelbaum for BMW MINI R56 Cooper (2007)

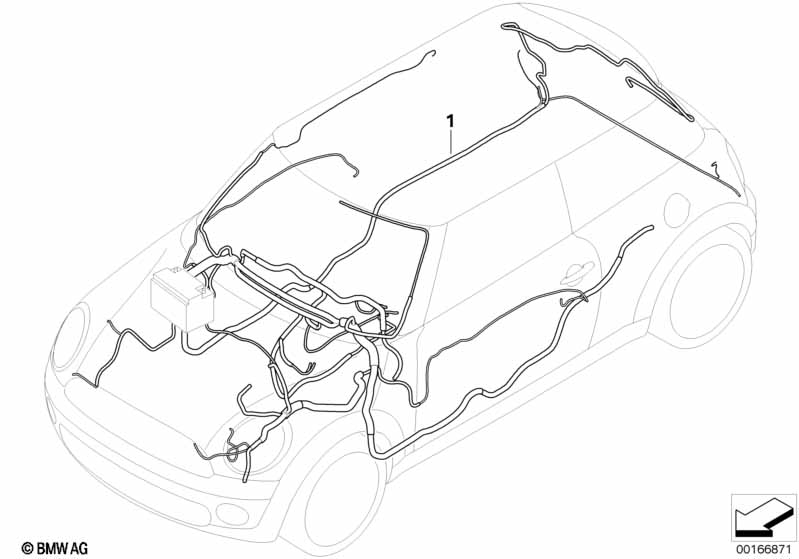

This Hauptkabelbaum technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Achtung! Die Hauptkabelbaum Audiozusatzkomponenten, siehe Bildtafel 61 05 612320, müssen je nach Ausstattung des Fahrzeuges zusätzlich verwendet. werden |
|||||||||
| Für den MINI Cooper (N12) ist zusätzlich die Adapterleitung Lüfter 9 141 670 zu verbauen. |
||||||||||
| 01 | Hauptkabelbaum Stereo | 1 | 08/2007 | 61113452853 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Hauptkabelbaum HIFI | 1 | 08/2007 | 61113452854 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Glasdach elektrisch oder Lichtpaket Für den MINI Cooper (N12) ist zusätzlich die Adapterleitung Lüfter 9 141 670 zu verbauen. |
S403A=Ja S563A=Ja |
|||||||||
| 01 | Hauptkabelbaum Stereo | 1 | 08/2007 | 61113452857 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Hauptkabelbaum HIFI | 1 | 08/2007 | 61113452858 | Entfallen | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
