Hauptkabelbaum Audiozusatzkomponenten for BMW MINI R56 Cooper (2007)

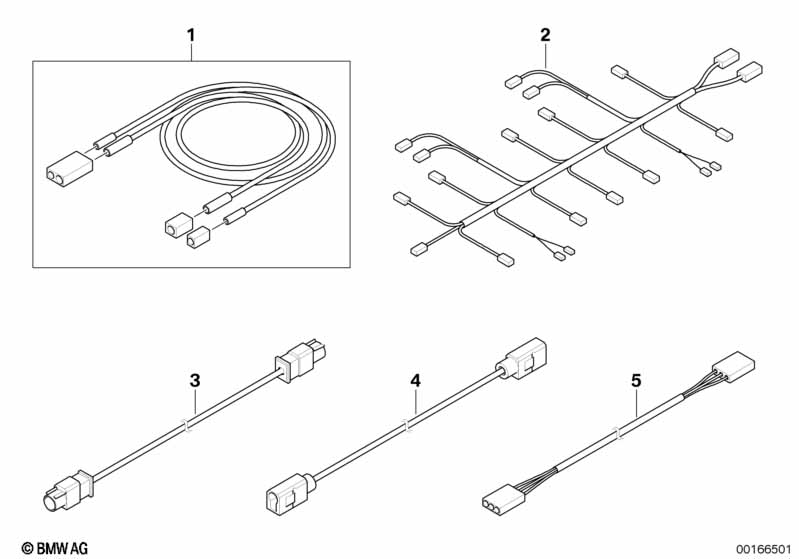

This Hauptkabelbaum Audiozusatzkomponenten technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Vorbereitung Handy m. Bluetooth |
S644A=Ja |
|||||||||
| 01 | Lichtwellenleiter MULF | 1 | 61119142231 | $60.32 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit DAB-Tuner |
S654A=Ja |
|||||||||
| 01 | Lichtwellenleiter DAB | 1 | 61119142230 | $60.32 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit TV-Funktion |
S601A=Ja |
|||||||||
| 01 | Lichtwellenleiter Video | 1 | 61119142227 | $60.32 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit TV-Funktion und DAB-Tuner |
S601A=Ja S654A=Ja |
|||||||||
| 01 | Lichtwellenleiter Video+DAB | 1 | 61119142232 | $72.58 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit TV-Funktion und Vorbereitung Handy m. Bluetooth |
S601A=Ja S644A=Ja |
|||||||||
| 01 | Lichtwellenleiter Video+MULF | 1 | 61119142233 | $69.47 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Vorbereitung Handy m. Bluetooth und DAB-Tuner |
S644A=Ja S654A=Ja |
|||||||||
| 01 | Lichtwellenleiter MULF+DAB | 1 | 61119142235 | $72.58 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit TV-Funktion und Vorbereitung Handy m. Bluetooth und DAB-Tuner |
S601A=Ja S644A=Ja S654A=Ja |
|||||||||
| 01 | Lichtwellenleiter Video+MULF+DAB | 1 | 61119142234 | $90.67 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Radio MINI CD und Radio MINI Boost CD und Navigationssystem Professional |
S6FBA=Nein S6FCA=Nein S609A=Nein |
|||||||||
| 03 | Antennenleitung Adapter Diversity FM | 1 | 61119179547 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Vorbereitung Telefoneinbau universal |
S640A=Ja |
|||||||||
| 04 | Antennenleitung Telefon | 1 | 61119142224 | Entfallen | Shop at ECS Tuning | |||||
| 05 | Kabelsatz Mikrofon | 1 | 61119142223 | Shop at ECS Tuning | ||||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
