Relais Klemme 30B Z7_4 for BMW 2 Series F45 Active Tourer 218d (2015)

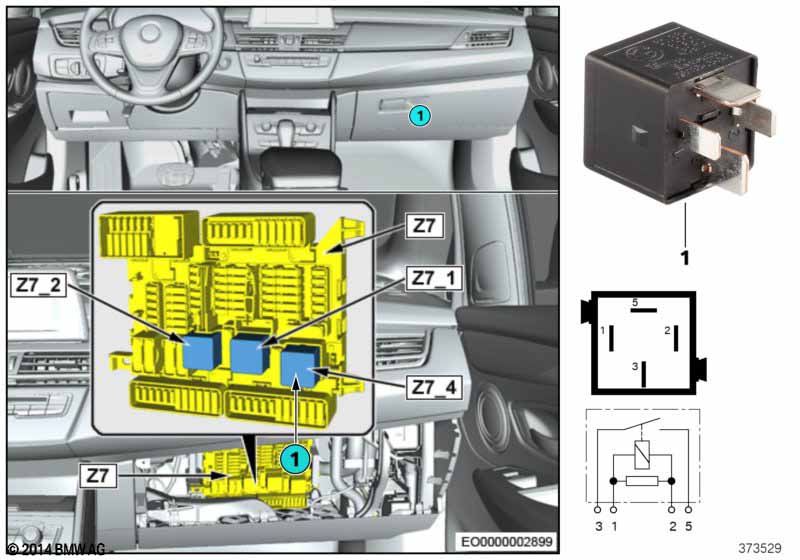

This Relais Klemme 30B Z7_4 technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Die gezeigte Karosserievariante in der Grafik dient nur als Beispiel und kann daher vom Original abweichen. |
|||||||||
| 01 | Relais Schliesser schwarz | LVA | 1 | 61366901469 | $13.96 | +Pfand | Shop at ECS Tuning | |||
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 218d Relais Klemme 30B Z7_4?
- This technical diagram illustrates the Relais Klemme 30B Z7_4 within the Fahrzeug Elektrik group for the 2 Series F45 Active Tourer 218d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Relais Schliesser schwarz (Part #61366901469).
- Which models use the hardware listed in this Relais Klemme 30B Z7_4?
- The hardware and components featured in the Relais Klemme 30B Z7_4 are specific to the 2 Series F45 Active Tourer 218d produced during 2015. These technical specifications ensure that parts like the Relais Schliesser schwarz (61366901469) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relais Klemme 30B Z7_4 assembly?
- Each item in the Relais Klemme 30B Z7_4 corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 218d, you can identify the Relais Schliesser schwarz by locating its position on the schematic, which then links to the official BMW part number 61366901469 for the Fahrzeug Elektrik section.
