Einzelteile Scheibenwischanlage for BMW 7 Series F02 740Li
This Einzelteile Scheibenwischanlage technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wischarm Beifahrerseite | 1 | 61617182594 | $51.40 | Shop at ECS Tuning | |||||
| 02 | Wischarm Fahrerseite | 1 | 06/2016 | 61617182459 | $51.40 | Shop at ECS Tuning | ||||
| 02 | Wischarm Fahrerseite | 1 | 61617182459 | $51.40 | Shop at ECS Tuning | |||||
| 03 | Gestänge Scheibenwischer mit Motor | 1 | 09/2009 | 61617306266 | Shop at ECS Tuning | |||||
| 03 | Gestänge Scheibenwischer mit Motor | 1 | 61617306266 | Shop at ECS Tuning | ||||||
| 04 | Halter | 1 | 61617207181 | $6.53 | Shop at ECS Tuning | |||||

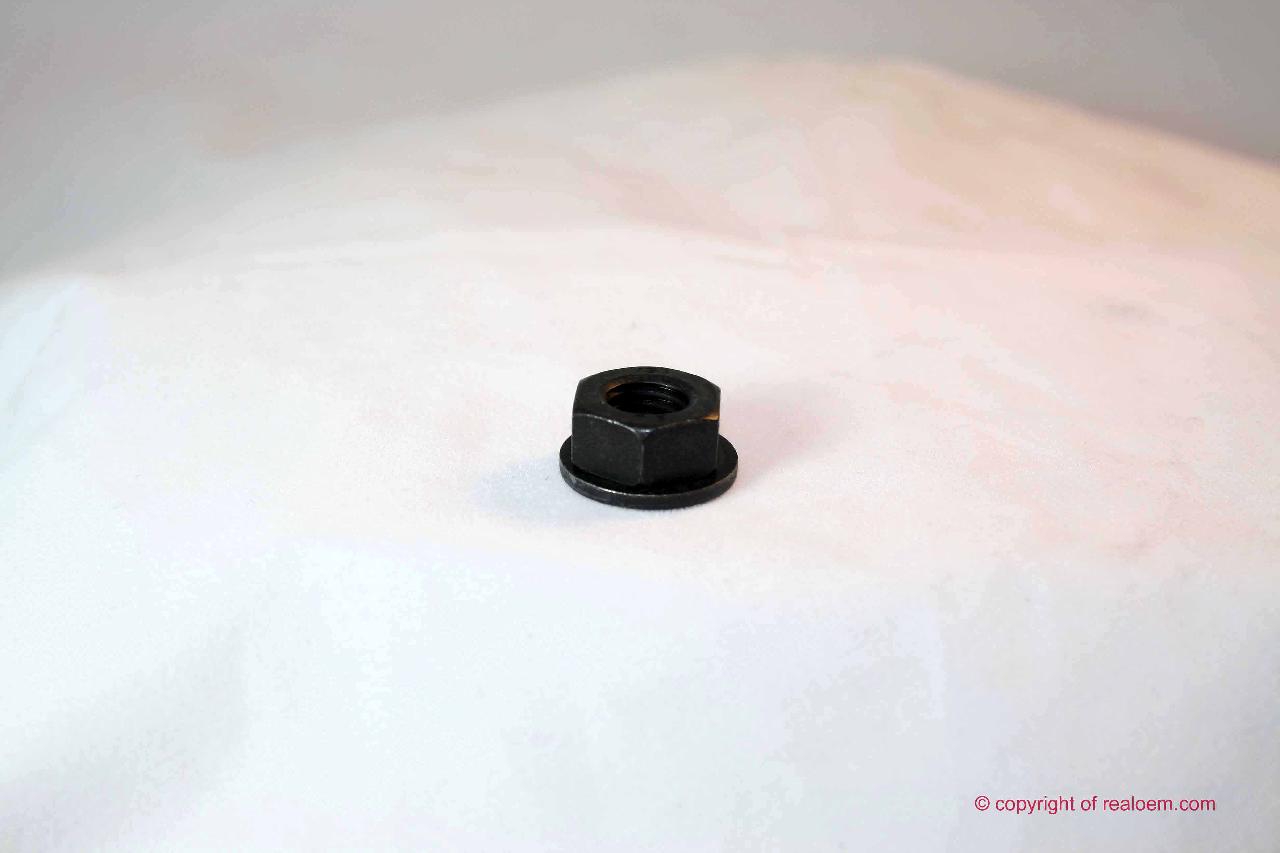

| 05 | Sechskantmutter | 2 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 06 | Entkopplungspuffer | 3 | 61617293753 | Shop at ECS Tuning | ||||||
| 07 | Blindniet | D = 4MM | 3 | 66316777308 | $0.33 | Shop at ECS Tuning | ||||
| 08 | Abdeckkappe | 2 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 09 | Abdeckkappe | 1 | 61617209275 | $1.92 | Shop at ECS Tuning | |||||
| 10 | Abdeckkappe | 1 | 61617209276 | $1.92 | Shop at ECS Tuning | |||||
| 11 | Buchsengehäuse | 4 POL. | 1 | 61139144234 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt SLK 2,8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Buchsenkontakt SLK 2,8 ELA | 1,0-2,5MM² /SN | 2 | 12521433216 | $0.50 | Shop at ECS Tuning | ||||
| -- | Einzelleiterabdichtung | 0,75-1,0MM² | 1 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
| -- | Einzelleiterabdichtung | 1,0-2,5MM² | 2 | 12521748974 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Sechskantmutter | BM8-8-ZNS3 | 3 | 07129905095 | Shop at ECS Tuning | |||||
