Rep.-Kabel Hauptkabelbaum geschirmt for BMW 2 Series U06 Active Tourer 218d (2025)

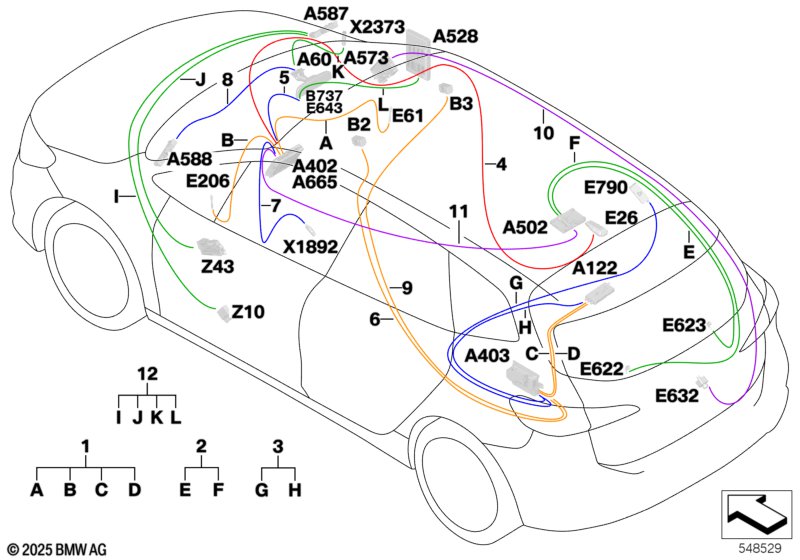

This Rep.-Kabel Hauptkabelbaum geschirmt technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep.-Modul Antennenltg. Basis | 1 | 61115A41E13 | Shop at ECS Tuning | ||||||
| 02 | Rep.-Modul Antennenltg. Dual Sim Active | 1 | 61115A40AF8 | Shop at ECS Tuning | ||||||
| 03 | Rep.-Modul Antennen DAB | 1 | 61115A409D7 | Shop at ECS Tuning | ||||||
| 04 | Antennenkabel GPS | L= 5351MM | 1 | 61115A41E05 | Shop at ECS Tuning | |||||
| 05 | Koaxleitung Augmented Reality Camera | L= 2746MM | 1 | 61115A41E06 | Shop at ECS Tuning | |||||
| 06 | Rep.-Modul Mantelleitung mit Schirm | L= 7139MM | 1 | 61115A41EA1 | Shop at ECS Tuning | |||||
| 07 | HSD-Leitung Headunit - CID | L= 2352MM | 1 | 61125A64296 | Shop at ECS Tuning | |||||
| 08 | Rep.-Kabel Mantelleitung mit Schirm | L= 3061MM | 1 | 61115A94D94 | Shop at ECS Tuning | |||||
| 09 | Teil nicht separat erhältlich | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 10 | Koaxleitung | 1 | 61125A64294 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Personal eSIM und BMW Live Cockpit Professional |
S6PAA=Ja S6U3A=Ja |
|||||||||
| 11 | Leitung Ethernet | L= 5756MM | 1 | 61115A63002 | Shop at ECS Tuning | |||||
| 12 | Rep.-Kabel Mantelleitung mit Schirm | L= 3379MM | 1 | 61115A62890 | Shop at ECS Tuning | |||||
