HV-Kabelsatz Ladedose for BMW 2 Series U06 Active Tourer 230eX (2025)

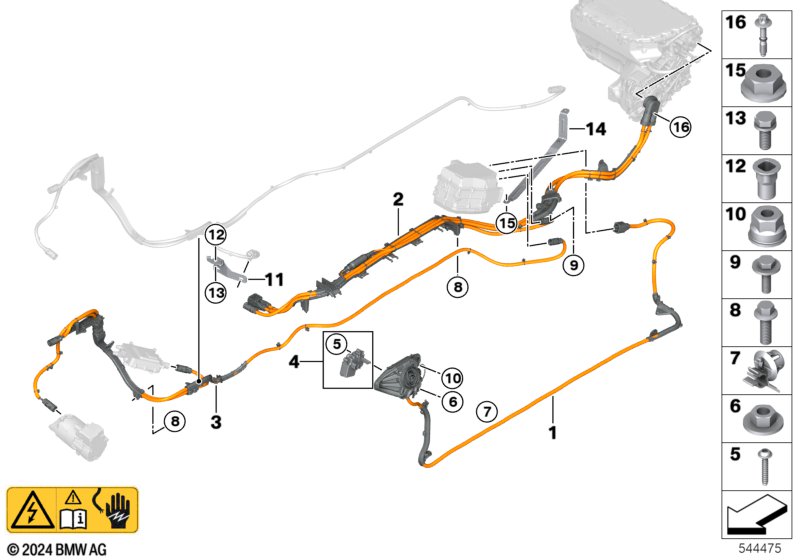

This HV-Kabelsatz Ladedose technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 230eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Ladedose Export Achtung! Bei Fahrzeugen ohne SA 8WN muss die SA 8WN im Fahrzeugauftrag hinterlegt werden. Über ISTA den Nachrüst-Button "Umrüstung Ladedose mit alternativem Mikroprozessor" verwenden. |
S8BKA=Nein |
|||||||||
| 01 | Hochvolt-Ladeleitung | 1 | 61295B3A403 | NoS | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Ladedose Export Bitte vor Bestellung einen TSARA-Fall Teiletechnik erstellen und auf Antwort warten! |
S8BKA=Ja |
|||||||||
| 01 | Hochvolt-Ladeleitung | 1 | 61295B32B60 | NoS | Shop at ECS Tuning | |||||
| 02 | Hochvolt-Kabelbaum Antriebselektronik | 1 | 61295A6A325 | Shop at ECS Tuning | ||||||
| 03 | HV-Leitung | 1 | 61295A57715 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Ladedose Export |
S8BKA=Nein |
|||||||||
| 04 | wird von BMW nicht angeboten | 1 | 84210300311 | Entfallen | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Ladedose Export |
S8BKA=Ja |
|||||||||
| 04 | Aktuator | US | 1 | 61125A3EBF9 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Ladedose Export Achtung! Schraube ist im Satz "Aktuator", Pos. 4 enthalten. |
S8BKA=Ja |
|||||||||
| 05 | Text und Ausweisungen genau beachten ! | 1 | 01104444444 | Entfallen, NoS | Shop at ECS Tuning | |||||
| 06 | Sechskantmutter mit Scheibe | M6 | 3 | 07147311066 | Shop at ECS Tuning | |||||
| 07 | Clip | 10 | 12905A1D061 | Shop at ECS Tuning | ||||||
| 08 | Sechskantschraube | M5X16-8.8 | 3 | 61215A1BC36 | Shop at ECS Tuning | |||||
| 09 | Sechskantschraube | M6X20 | 2 | 07149905728 | Shop at ECS Tuning | |||||
| 10 | Mutter | 1 | 41009630135 | Shop at ECS Tuning | ||||||
| 11 | Halter HV-Leitung | 1 | 12909797854 | Shop at ECS Tuning | ||||||
| 12 | Blindnietmutter Flachkopf | M6 | 1 | 07147311614 | Shop at ECS Tuning | |||||
| 13 | Sechskantschraube mit Scheibe | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Halter HV-Leitung | 1 | 61139845803 | Shop at ECS Tuning | ||||||
| 15 | Sechskantmutter | M6-10-ZNNIV SI | 2 | 07129907467 | Shop at ECS Tuning | |||||
| 16 | ASA-Schraube | M8X46 | 1 | 61125B511C1 | NoS | Shop at ECS Tuning | ||||
Ergänzungen
- NoS = No Stock
- Entfallen = nicht mehr lieferbar.
