Rep.-Kabel Hauptkabelbaum geschirmt for BMW 7 Series G70 M760eX (2025)

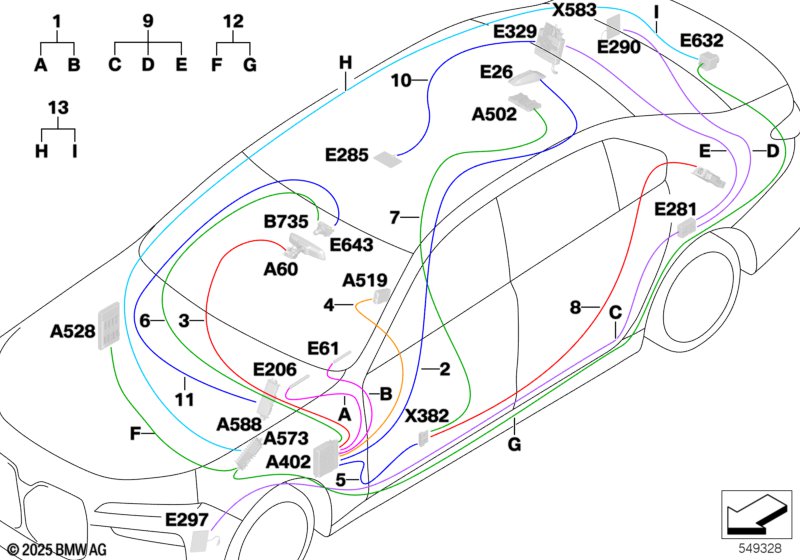

This Rep.-Kabel Hauptkabelbaum geschirmt technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 M760eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep.-Modul Antenneltg. WLAN/ Bluetooth | L= 2206MM | 1 | 61115A57868 | Shop at ECS Tuning | |||||
| 02 | Antennenkabel | L= 3961MM | 1 | 61115A57870 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 03 | HSD-Leitung Innenspiegel | L= 2933MM | 1 | 61115A580F8 | Shop at ECS Tuning | |||||
| 04 | Teil nicht separat erhältlich | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 05 | Reparaturmodul Ethernet | L= 533MM | 1 | 61115A57DB4 | Shop at ECS Tuning | |||||
| 06 | Koaxleitung | 1 | 61115A57E75 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf |
S6AEA=Ja S6AFA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3899MM | 1 | 61115A57871 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf |
S6AEA=Ja S6AFA=Nein |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3899MM | 1 | 61115A57871 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf |
S6AEA=Nein S6AFA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3899MM | 1 | 61115A57871 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Ja S6AFA=Ja S6PAA=Ja S8LRA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Ja S6AFA=Ja S6PAA=Ja S8LRA=Nein |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Ja S6AFA=Ja S6PAA=Nein S8LRA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Ja S6AFA=Nein S6PAA=Ja S8LRA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Ja S6AFA=Nein S6PAA=Ja S8LRA=Nein |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Ja S6AFA=Nein S6PAA=Nein S8LRA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Nein S6AFA=Ja S6PAA=Ja S8LRA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Nein S6AFA=Ja S6PAA=Ja S8LRA=Nein |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und Ländersteuerung Russland 10323 |
S6AEA=Nein S6AFA=Ja S6PAA=Nein S8LRA=Ja |
|||||||||
| 07 | Reparaturmodul Ethernet | L= 3905MM | 1 | 61115A57872 | Shop at ECS Tuning | |||||
| 08 | Reparaturmodul Antennenleitungen | 1 | 61115A57853 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Driving Assistant Professional |
S5AUA=Ja |
|||||||||
| 11 | Reparaturkabelbaum Mantelleitung | L= 4544MM | 1 | 61115A581E4 | NoS | Shop at ECS Tuning | ||||
| 12 | Reparaturmodul Ethernet | L= 8231MM | 1 | 61115A57DC1 | Shop at ECS Tuning | |||||
| 13 | Reparaturmodul APCAM | L= 6452MM | 1 | 61115A6C2E7 | Shop at ECS Tuning | |||||
Ergänzungen
- NoS = No Stock
