Rep.-Kabel Hauptk.baum Antenne/Ethernet for BMW MINI F66 JCW

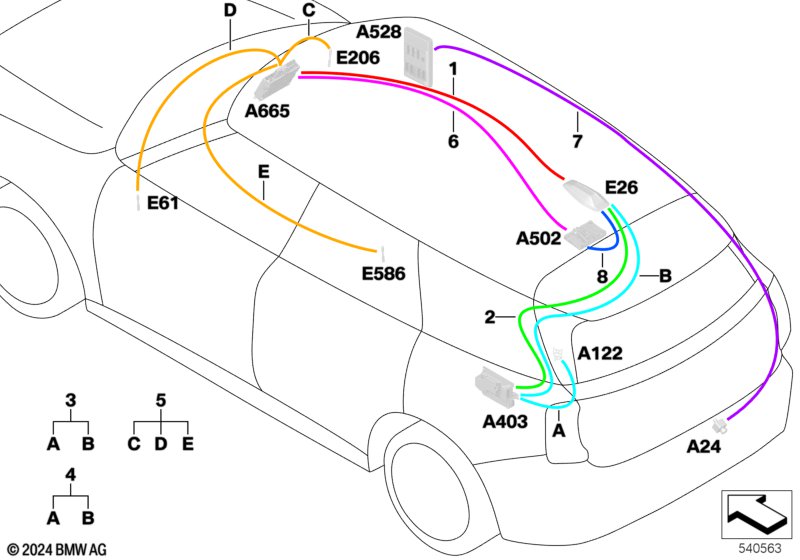

This Rep.-Kabel Hauptk.baum Antenne/Ethernet technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antennenkabel GPS | L= 6167MM | 1 | 61115B36719 | NoS | Shop at ECS Tuning | ||||
| 03 | Rep.-Modul Antennen DAB | L= 3147MM | 1 | 61115B35C34 | NoS | Shop at ECS Tuning | ||||
| 04 | Rep.-Modul Antennenleitungen FM1/ FM2 | L= 3161MM | 1 | 61115B35C33 | NoS | Shop at ECS Tuning | ||||
| 05 | Rep.-Modul Antenneltg. WLAN/ Bluetooth | L= 2293MM | 1 | 61115B36554 | NoS | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM |
S6AEA=Ja S6AFA=Ja S6PAA=Nein |
|||||||||
| 06 | Leitung Ethernet | L= 4564MM | 1 | 61115B35CB7 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM |
S6AEA=Ja S6AFA=Nein S6PAA=Nein |
|||||||||
| 06 | Leitung Ethernet | L= 4564MM | 1 | 61115B35CB7 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM |
S6AEA=Nein S6AFA=Ja S6PAA=Nein |
|||||||||
| 06 | Leitung Ethernet | L= 4564MM | 1 | 61115B35CB7 | NoS | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und MINI Navigation AR |
S6AEA=Ja S6AFA=Ja S6PAA=Ja S6UQA=Nein |
|||||||||
| 06 | Leitung Ethernet | L= 4560MM | 1 | 61115B35CB5 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und MINI Navigation AR |
S6AEA=Ja S6AFA=Nein S6PAA=Ja S6UQA=Nein |
|||||||||
| 06 | Leitung Ethernet | L= 4560MM | 1 | 61115B35CB5 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und MINI Navigation AR |
S6AEA=Nein S6AFA=Ja S6PAA=Ja S6UQA=Nein |
|||||||||
| 06 | Leitung Ethernet | L= 4560MM | 1 | 61115B35CB5 | NoS | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und MINI Navigation AR |
S6AEA=Ja S6AFA=Ja S6PAA=Ja S6UQA=Ja |
|||||||||
| 06 | Leitung Ethernet | L= 3386MM | 1 | 61115B36767 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und MINI Navigation AR |
S6AEA=Ja S6AFA=Nein S6PAA=Ja S6UQA=Ja |
|||||||||
| 06 | Leitung Ethernet | L= 3386MM | 1 | 61115B36767 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf und Personal eSIM und MINI Navigation AR |
S6AEA=Nein S6AFA=Ja S6PAA=Ja S6UQA=Ja |
|||||||||
| 06 | Leitung Ethernet | L= 3386MM | 1 | 61115B36767 | NoS | Shop at ECS Tuning | ||||
| 07 | Leitung Ethernet | L= 7811MM | 1 | 61115B36733 | NoS | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf |
S6AEA=Ja S6AFA=Ja |
|||||||||
| 08 | Antennenkabel GPS | L= 3880MM | 1 | 61115A88438 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf |
S6AEA=Ja S6AFA=Nein |
|||||||||
| 08 | Antennenkabel GPS | L= 3880MM | 1 | 61115A88438 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Teleservices und Gesetzlicher Notruf |
S6AEA=Nein S6AFA=Ja |
|||||||||
| 08 | Antennenkabel GPS | L= 3880MM | 1 | 61115A88438 | NoS | Shop at ECS Tuning | ||||
Ergänzungen
- NoS = No Stock
