Nebelscheinwerfer for BMW 5 Series E60 530d (2005)

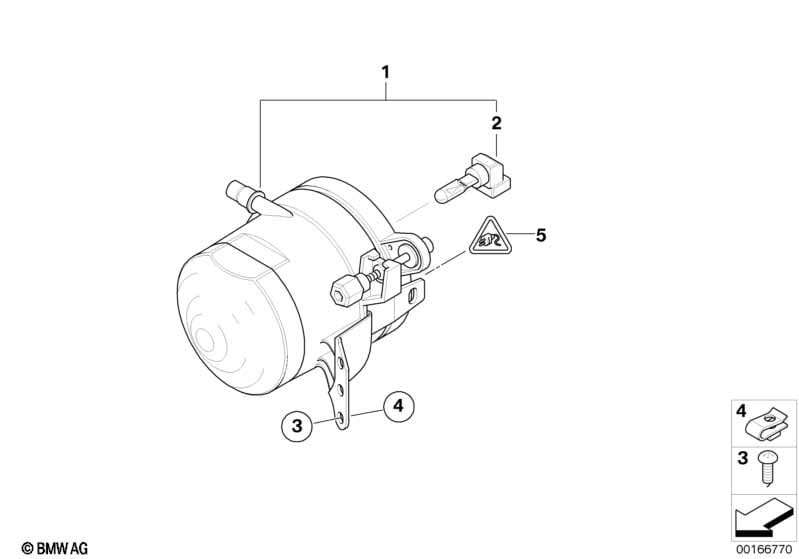

This Nebelscheinwerfer technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.

Nebelscheinwerfer
Nr. Beschreibung Erläuterungen Anzahl  Von   Bis  Teilenummer Preis Ergänzungen
01 Nebelscheinwerfer links 1 63176910791 $125.48 Shop at ECS Tuning
01 Nebelscheinwerfer rechts 1 63176910792 $125.48 Shop at ECS Tuning
02 Glühlampe Abblendlicht/Nebelscheinwerfer HB4 12V 55W 2 63217160786 $18.86 Shop at ECS Tuning
03 Schraube ST 4.8X13 4 07149156623 $0.73 Shop at ECS Tuning
04 Blechmutter ST4,8-9-ZNS3 4 07129904150 $0.25 Shop at ECS Tuning
05 Buchsengehäuse grau 2 POL. 2 61138364498 $2.33 Shop at ECS Tuning
nur in Verbindung mit
-- Flachfederkontakt JPT ELA mit Kabel 0,5-1,0 MM² AG 2 61130070584 Shop at ECS Tuning

See Also

Frequently Asked Questions

What assembly is shown in the BMW 5 Series E60 530d Nebelscheinwerfer?
This technical diagram illustrates the Nebelscheinwerfer within the Beleuchtungsanlage group for the 5 Series E60 530d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Nebelscheinwerfer links (Part #63176910791).
Which models use the hardware listed in this Nebelscheinwerfer?
The hardware and components featured in the Nebelscheinwerfer are specific to the 5 Series E60 530d produced during 2005. These technical specifications ensure that parts like the Nebelscheinwerfer links (63176910791) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Nebelscheinwerfer assembly?
Each item in the Nebelscheinwerfer corresponds to the numbered list below the illustration. For the 5 Series E60 530d, you can identify the Nebelscheinwerfer links by locating its position on the schematic, which then links to the official BMW part number 63176910791 for the Beleuchtungsanlage section.
