Scheinwerfer for BMW 3 Series E90 320d (2007)

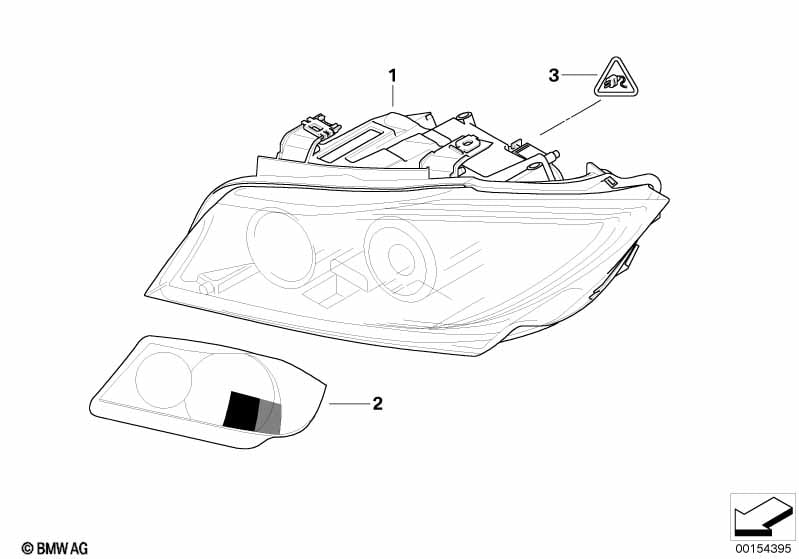

This Scheinwerfer technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Scheinwerfer Xenon-Licht beinhaltet nicht -Xenon Steuergerät -Xenonlampe -Elektronikbox ALC |
|||||||||
| 01 | Scheinwerfer links | VALEO | 1 | 63116942723 | +Pfand | Shop at ECS Tuning | ||||
| 01 | Scheinwerfer rechts | VALEO | 1 | 63116942724 | +Pfand | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Xenon-Licht |
S522A=Ja |
|||||||||
| 01 | Scheinwerfer Bi-Xenonlicht links | ZKW | 1 | 63117161673 | Shop at ECS Tuning | |||||
| 01 | Scheinwerfer Bi-Xenonlicht rechts | ZKW | 1 | 63117161674 | $938.57 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Xenon-Licht und Adaptives Kurvenlicht |
S522A=Ja S524A=Ja |
|||||||||
| 01 | Scheinwerfer AHL-Xenonlicht links | ZKW | 1 | 63117162081 | Shop at ECS Tuning | |||||
| 01 | Scheinwerfer AHL-Xenonlicht rechts | ZKW | 1 | 63117162082 | Shop at ECS Tuning | |||||
| 02 | Satz Abdeckfolie Scheinwerfer Halogen | RHD | 1 | 63120402601 | Shop at ECS Tuning | |||||
| 02 | Satz Abdeckfolie Scheinwerfer Xenon | RHD | 1 | 63110421754 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Rep.-Satz Buchsengehäuse | 12 POL. | 1 | 61132359991 | Entfallen | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Rep.-Satz Buchsengehäuse | 12 POL. | 1 | 61132472911 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt MQS ELA | 0,75-1,5 MM² | 9 | 61136901728 | $0.35 | Shop at ECS Tuning | ||||
| -- | Einzelleiterabdichtung | 0,5-1,5 MM² | 5 | 61138353706 | $0.27 | Shop at ECS Tuning | ||||
| -- | Buchsenkontakt ELO-Power 2,8x0,63 | 1,0- 2,5 MM² SN | 3 | 61138364838 | $0.62 | Shop at ECS Tuning | ||||
| -- | Einzelleiterabdichtung | 0.5-1.0MM² GN | 4 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Einzelleiterabdichtung | 1,5-2,5MM ² | 3 | 61138372626 | $0.47 | Shop at ECS Tuning | ||||
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
- Entfallen = nicht mehr lieferbar.
