Klimakompressor-Anbauteile/Riementrieb for BMW 5 Series E28 525e

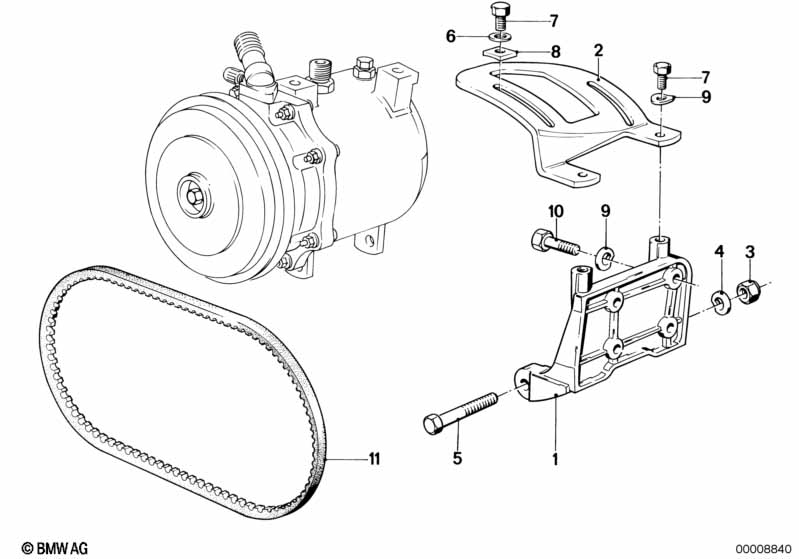

This Klimakompressor-Anbauteile/Riementrieb technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lagerbock | 1 | 06/1983 | 64521268652 | $76.57 | Entfallen | Shop at ECS Tuning | |||
| 02 | Spannlasche | 1 | 06/1983 | 64521277084 | $9.82 | Entfallen | Shop at ECS Tuning | |||
| 03 | Sechskantmutter selbstsichernd | M10 | 1 | 06/1983 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 04 | Federscheibe | B10-ZNS3 | 2 | 06/1983 | 07119904463 | Shop at ECS Tuning | ||||
| 05 | Sechskantschraube | M10X145 | 1 | 06/1983 | 07119912735 | Entfallen | Shop at ECS Tuning | |||
| 06 | Unterlegscheibe | 8,4X16X1,6-ZNNV | 2 | 06/1983 | 07119907030 | Shop at ECS Tuning | ||||
| 07 | Sechskantschraube | M8X20-ZNNIV SI | 4 | 06/1983 | 07119903039 | Shop at ECS Tuning | ||||
| 08 | Unterlegscheibe | 2 | 06/1983 | 64521276354 | $4.39 | Entfallen | Shop at ECS Tuning | |||
| 09 | Federscheibe | 8,4X15-ZNS3 | 6 | 06/1983 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 10 | Sechskantschraube | M8X25-8.8-ZNNIV | 4 | 06/1983 | 07119906181 | $0.55 | Shop at ECS Tuning | |||
| 10 | Sechskantschraube | M8X25 | 4 | 06/1983 | 07119913653 | $0.47 | Shop at ECS Tuning | |||
| 11 | Keilriemen | 1 | 06/1983 | 64551722991 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
