Verdampfer / Expansionsventil for BMW 5 Series E39 528i (2000)

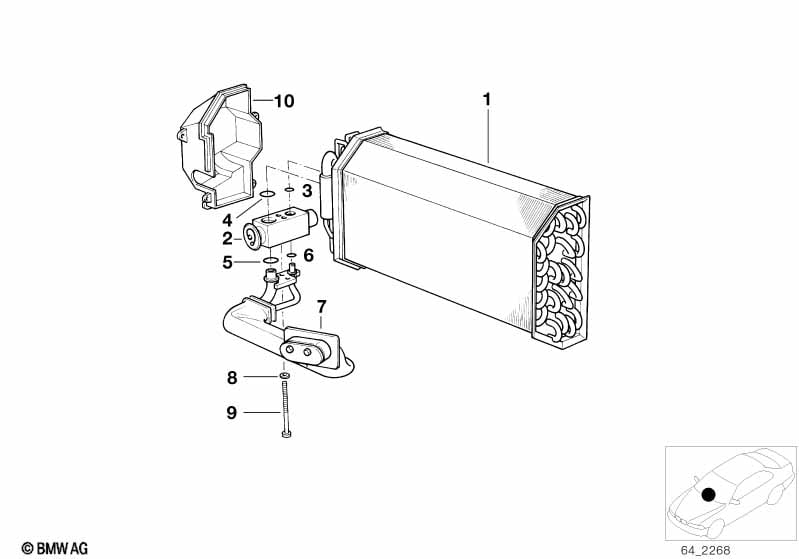

This Verdampfer / Expansionsventil technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Klimaautomatik |
S534A=Ja |
||||||||
| 01 | Verdampfer Klimaautomatik | 1 | 03/2000 | 64118385560 | $560.02 | Shop at ECS Tuning | ||||
| 02 | Expansionsventil | 1 | 64116981454 | $145.03 | Shop at ECS Tuning | |||||
| 03 | Dichtring | D=11.1MM | 1 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 04 | Dichtring | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 05 | Dichtring | D=17,17MM | 1 | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 06 | Dichtring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 07 | Kältemittelleitung | 1 | 03/2000 | 64118385550 | $115.78 | Entfallen | Shop at ECS Tuning | |||
| 08 | Sicherungsscheibe | 2 | 64111380574 | $1.52 | Shop at ECS Tuning | |||||
| 09 | Zylinderschraube | M5X50 | 2 | 07119920027 | $3.42 | Shop at ECS Tuning | ||||
| 10 | Deckel Verdampfer | 1 | 03/2000 | 64118385548 | $21.09 | Entfallen | Shop at ECS Tuning | |||
