Wasserschläuche-Pumpe-Ventil for BMW 5 Series E39 528i (2000)

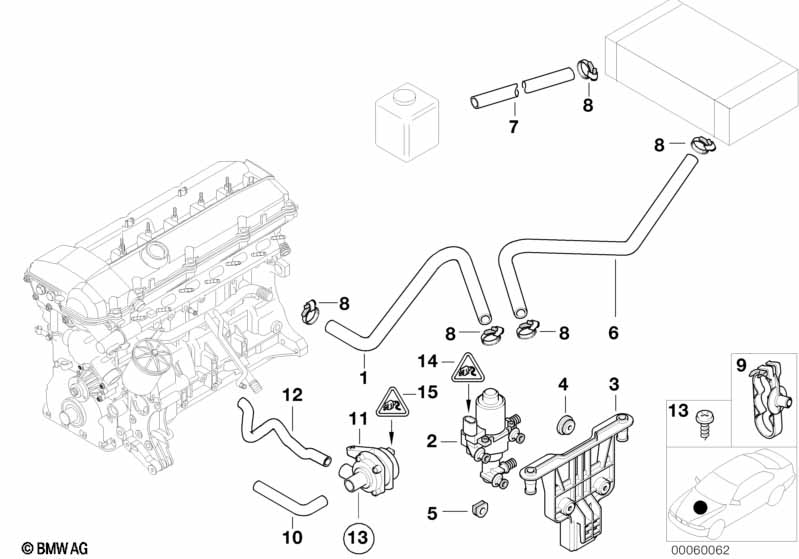

This Wasserschläuche-Pumpe-Ventil technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Standheizung |
S536A=Nein |
|||||||||
| 01 | Schlauch Motorvorlauf-Wasserventil | 1 | 09/1998 | 64218378368 | $31.70 | Shop at ECS Tuning | ||||
| 02 | Wasserventil | 1 | 09/1998 | 64118369805 | $82.22 | Shop at ECS Tuning | ||||
| 03 | Halter Wasserventil | 1 | 09/1998 | 64118379920 | $22.28 | Entfallen | Shop at ECS Tuning | |||
| 04 | Gummilager | 1 | 09/1998 | 64118391475 | $1.03 | Shop at ECS Tuning | ||||
| 05 | Tülle | 2 | 09/1998 | 64126910076 | $1.50 | Shop at ECS Tuning | ||||
| 06 | Schlauch Wasserventil-Heizkörper | 1 | 09/1998 | 64218385294 | $16.16 | Shop at ECS Tuning | ||||
| 07 | Schlauch Heizkörper-Ausgleichbehälter | 1 | 09/1998 | 64218378369 | $29.05 | Shop at ECS Tuning | ||||
| 08 | Schlauchschelle | L16-30 | 4 | 09/1998 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 09 | Schlauchhalter Vorlauf | 1 | 09/1998 | 64118363051 | $1.42 | Shop at ECS Tuning | ||||
| 10 | Wasserschlauch | 1 | 09/1998 | 11531438633 | $26.42 | Shop at ECS Tuning | ||||
| 11 | Zusatzwasserpumpe | 1 | 09/1998 | 64118381989 | $163.38 | Shop at ECS Tuning | ||||
| 12 | Wasserschlauch | 1 | 09/1998 | 11531438634 | $30.20 | Shop at ECS Tuning | ||||
| 13 | Schneidschraube | 6X25 | 1 | 09/1998 | 17111728723 | $1.05 | Shop at ECS Tuning | |||
| 14 | Universal-Buchsengehäuse uncodiert | 2 POL. | 1 | 09/1998 | 12/2003 | 61138795954 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,5-0,75 MM² AG | X | 09/1998 | 12/2003 | 61130056384 | Shop at ECS Tuning | |||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,35-0,5 MM² AG | X | 09/1998 | 12/2003 | 61130056961 | Shop at ECS Tuning | |||
| 14 | Rep.-Satz Buchsengehäuse | 2 POL. | 1 | 09/1998 | 61132359999 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,5-0,75 MM² AG | X | 09/1998 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,35-0,5 MM² AG | X | 09/1998 | 61130056961 | Shop at ECS Tuning | ||||
| 15 | Steckergehäuse | 2 POL. | 1 | 09/1998 | 12521732460 | $6.38 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Einzelleiterabdichtung | 0,13-1,0 MM² | 2 | 09/1998 | 12521732592 | $0.38 | Shop at ECS Tuning | |||
| -- | Flachsteckhülse | 2 | 09/1998 | 12521737771 | $0.57 | Shop at ECS Tuning | ||||
| -- | Abdeckkappe | 1 | 09/1998 | 12511742836 | $0.78 | Entfallen | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
