Kältemittelleitungen for BMW MINI F66 JCW

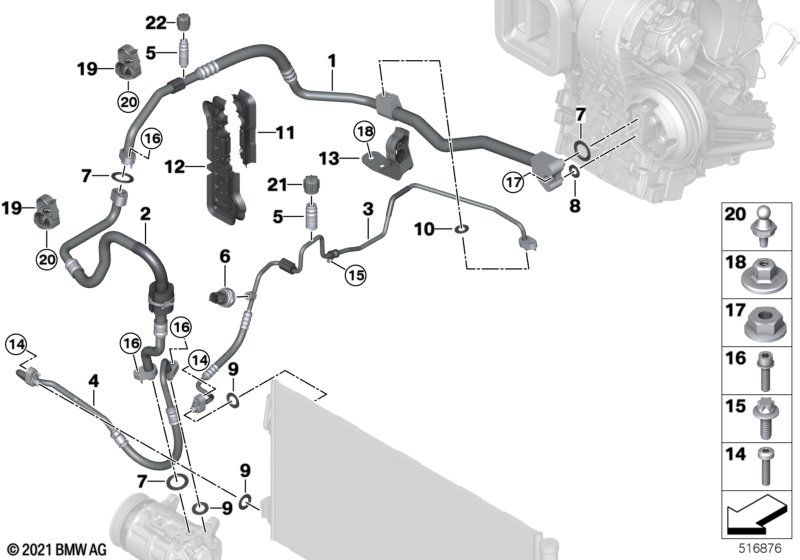

This Kältemittelleitungen technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Nein |
|||||||||
| 01 | Saugleitung Verdampfer | 1 | 64505A07781 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Ja |
|||||||||
| 01 | Saugleitung Verdampfer | 1 | 64505A07782 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Nein |
|||||||||
| 02 | Saugleitung Kompressor | 1 | 64535A41C84 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Ja |
|||||||||
| 02 | Saugleitung Kompressor | 1 | 64505A7F4F3 | NoS | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Nein |
|||||||||
| 03 | Druckrohr Kondensator-Expansionsventil | 1 | 64505A07777 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Ja |
|||||||||
| 03 | Druckrohr Kondensator-Expansionsventil | 1 | 64505A07776 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Nein |
|||||||||
| 04 | Druckleitung Kompressor-Kondensator | 1 | 64535A07780 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Ja |
|||||||||
| 04 | Druckleitung Kompressor-Kondensator | 1 | 64535B3FD99 | NoS | Shop at ECS Tuning | |||||
| 05 | Ventileinsatz | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| 06 | Drucksensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 07 | Dichtring | D=17MM | 3 | 64539284019 | Shop at ECS Tuning | |||||
| 08 | Dichtring | D=8MM | 1 | 64539284020 | Shop at ECS Tuning | |||||
| 09 | Dichtring | D=11MM | 3 | 64539284018 | Shop at ECS Tuning | |||||
| 10 | Dichtring | D=8MM | 1 | 64539284020 | Shop at ECS Tuning | |||||
| 11 | Abdichtung Aggregateraum vorne | 1 | 64505A1F335 | Shop at ECS Tuning | ||||||
| 12 | Abdichtung Aggregateraum | 1 | 64535A3B493 | NoS | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Nein |
|||||||||
| 13 | Halter Saugleitung | 1 | 64509871202 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Ja |
|||||||||
| 13 | Halter Saugleitung | 1 | 64509871203 | Shop at ECS Tuning | ||||||
| 14 | Flachkopfschraube | M6X25 | 2 | 07119909776 | Shop at ECS Tuning | |||||
| 15 | ASA-Schraube gewindefurchend | M6X16 | 1 | 34509804151 | Shop at ECS Tuning | |||||
| 16 | ISA-Schraube | M8X30-U1-8.8 | 3 | 07129904835 | $2.29 | Shop at ECS Tuning | ||||
| 17 | Sechskantmutter | M6-10-ZNNIV SI | 1 | 07129907467 | Shop at ECS Tuning | |||||
| 18 | Kunststoffhutmutter mit Scheibe | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Leitungsclip | 2 | 07149209733 | Shop at ECS Tuning | ||||||
| 20 | Kugelbolzen | 2 | 64539209732 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Nein |
|||||||||
| 21 | Verschlusskappe Druckleitung | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Ja |
|||||||||
| 21 | Verschlusskappe Druckleitung | R1234YF | 1 | 07149287979 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Nein |
|||||||||
| 22 | Verschlusskappe Saugleitung | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Kältemittel R1234yf |
S8R9A=Ja |
|||||||||
| 22 | Verschlusskappe Saugleitung | R1234YF | 1 | 07149287978 | Shop at ECS Tuning | |||||
Ergänzungen
- NoS = No Stock
