Diebstahlwarnanlage for BMW MINI R56 Cooper (2007)

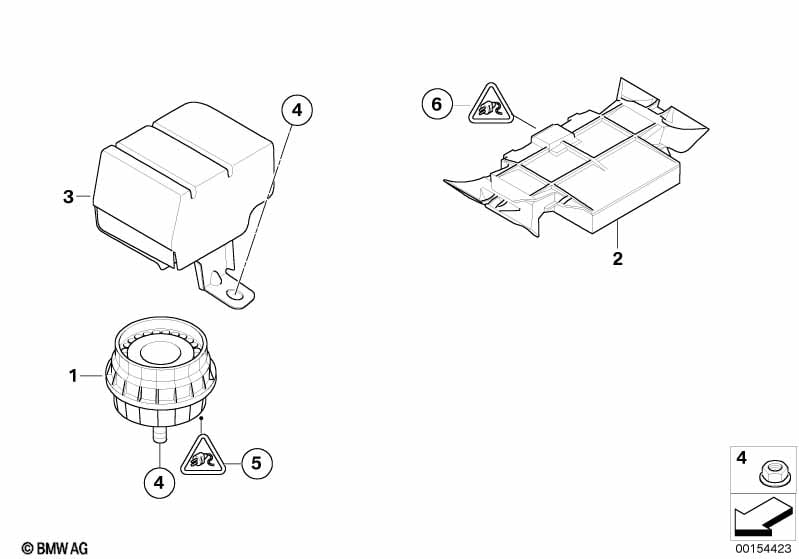

This Diebstahlwarnanlage technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tilt-Sirene mit Neigungsgeber | 1 | 65756970943 | $138.27 | Shop at ECS Tuning | |||||
| 02 | Ultraschall-Modul | 1 | 65753456365 | Shop at ECS Tuning | ||||||
| 03 | Halter Notstromsirene | 1 | 65752753429 | $9.28 | Shop at ECS Tuning | |||||
| 04 | Sechskantmutter | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Universal-Buchsengehäuse uncodiert | 3 POL. | 1 | 06/2014 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,5-0,75 MM² AG | X | 06/2014 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,35-0,5 MM² AG | X | 06/2014 | 61130056961 | Shop at ECS Tuning | ||||
| 05 | Rep.-Satz Buchsengehäuse | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
