DAB-Tuner for BMW MINI R56 Cooper (2007)

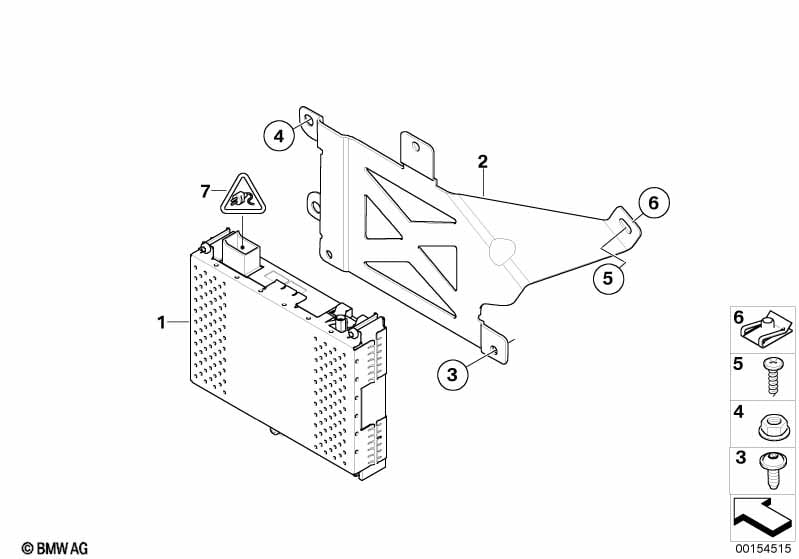

This DAB-Tuner technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit DAB-Tuner |
S654A=Ja |
||||||||
| 01 | DAB-Tuner | 1 | 08/2010 | 65129216459 | Shop at ECS Tuning | |||||
| 02 | Halter DAB/IBOC-Tuner | 1 | 08/2010 | 65122751444 | $11.00 | Entfallen | Shop at ECS Tuning | |||
| 03 | Linsenschraube | M5X16-A2-80-MK | 3 | 08/2010 | 06327657949 | $0.96 | Shop at ECS Tuning | |||
| 04 | Sechskantmutter mit Scheibe | AM6-8-ZNNIV SI | 2 | 08/2010 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 05 | Linsenblechschraube | ST4,2X13MM | 1 | 08/2010 | 07146977198 | $0.08 | Shop at ECS Tuning | |||
| 06 | Blechmutter | ST4.2 | 1 | 08/2010 | 46632756797 | $0.23 | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
