Verstärker / Halter Hifi System for BMW MINI R56 Cooper (2007)

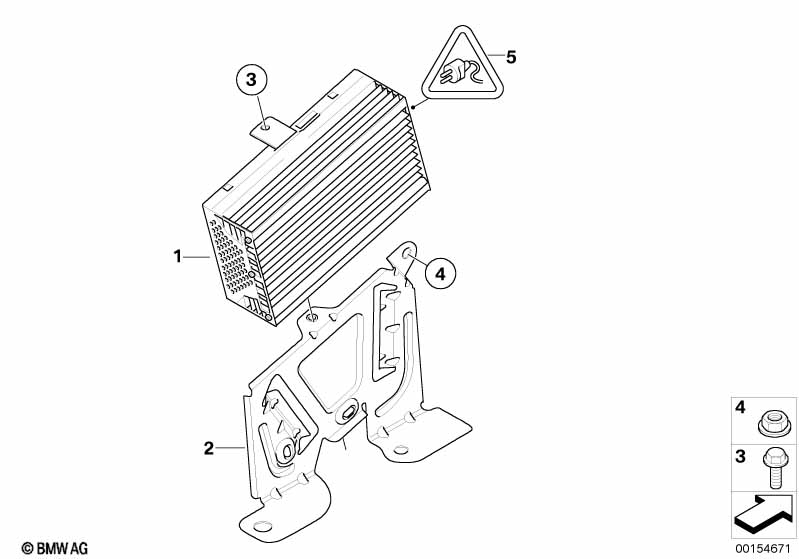

This Verstärker / Halter Hifi System technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit MINI HiFi Lautsprechersystem |
S6FDA=Ja |
|||||||||
| 01 | Verstärker Hifi-System | 1 | 09/2009 | 65123454362 | $460.85 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit HiFi System Harman Kardon |
S674A=Ja |
|||||||||
| 01 | Verstärker Hifi System Harman Kardon | 1 | 65129388956 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit HiFi System Harman Kardon oder MINI HiFi Lautsprechersystem |
S674A=Ja S6FDA=Ja |
|||||||||
| 02 | Halter Verstärker Hifi-System | 1 | 65122753430 | $11.25 | Shop at ECS Tuning | |||||
| 03 | Sechskantschraube | M5X14 | 1 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Sechskantmutter | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Buchsengehäuse schwarz | 21 POL. | 1 | 61138364882 | $1.30 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,5-0,75 MM² AG | 21 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Universal-Abdeckkappe uncodiert | 42 POL. | 1 | 61138364810 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 21 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| -- | Buchsengehäuse grau | 21 POL. | 1 | 61138364884 | $1.30 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
