Radio Wave CD / Mini CD for BMW MINI R56 Cooper (2007)

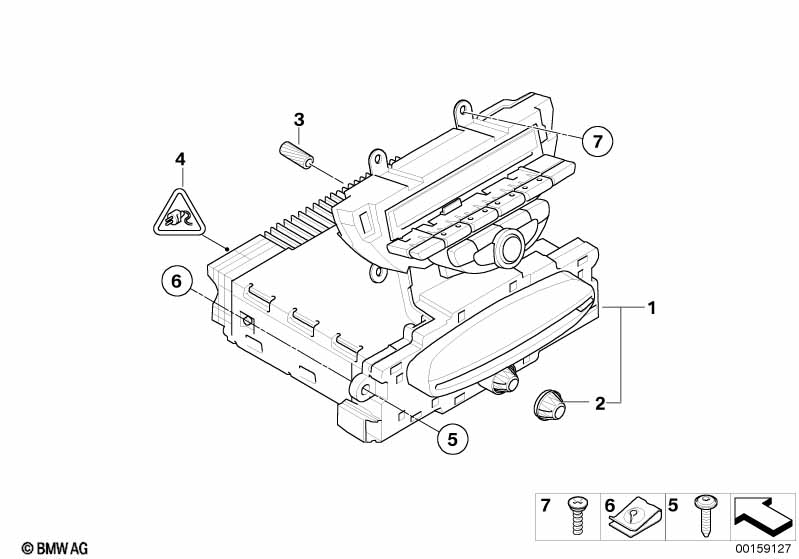

This Radio Wave CD / Mini CD technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Radio MINI Wave CD |
S6FBA=Ja |
|||||||||
| 01 | Radio Wave CD | 1 | 08/2007 | 65123449347 | Entfallen, +Pfand | Shop at ECS Tuning | ||||
| 01 | Radio MINI CD | 1 | 08/2007 | 65123455681 | Shop at ECS Tuning | |||||
| 02 | Knopf | 1 | 08/2007 | 65123448287 | $7.39 | Shop at ECS Tuning | ||||
| 03 | Radiohaltestift | 1 | 08/2007 | 65128370535 | $0.94 | Shop at ECS Tuning | ||||
| 05 | C-Clip Mutter | 4 | 08/2007 | 07146988451 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Linsenblechschraube | 4.2X16MM | 4 | 08/2007 | 07146977107 | $0.64 | Entfallen | Shop at ECS Tuning | ||
| 07 | Schraube | 4 | 08/2007 | 51452756347 | $0.57 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Radio Wave CD / Mini CD?
- This technical diagram illustrates the Radio Wave CD / Mini CD within the Audio, Navigation, Elektroniksysteme group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Radio Wave CD (Part #65123449347).
- Which models use the hardware listed in this Radio Wave CD / Mini CD?
- The hardware and components featured in the Radio Wave CD / Mini CD are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Radio Wave CD (65123449347) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radio Wave CD / Mini CD assembly?
- Each item in the Radio Wave CD / Mini CD corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Radio Wave CD by locating its position on the schematic, which then links to the official BMW part number 65123449347 for the Audio, Navigation, Elektroniksysteme section.
