Radio Boost CD for BMW MINI R56 Cooper (2007)

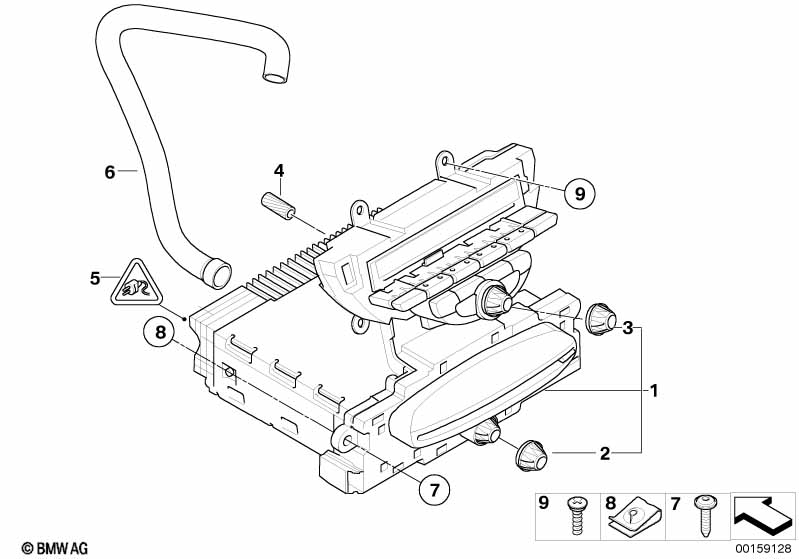

This Radio Boost CD technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Radio MINI Boost CD |
S6FCA=Ja |
||||||||
| 01 | Austausch Radio Boost CD | 1 | 08/2007 | 65123451873 | $758.08 | Entfallen | Shop at ECS Tuning | |||
| 01 | REMAN Radio Boost CD | 1 | 09/2009 | 65123451874 | $758.08 | Entfallen | Shop at ECS Tuning | |||
| 01 | RP Radio Boost CD | 1 | 09/2009 | 65123455539 | Entfallen | Shop at ECS Tuning | ||||
| 01 | RP REMAN Radio Boost CD | 1 | 08/2010 | 65123455540 | Shop at ECS Tuning | |||||
| 02 | Knopf | 1 | 08/2010 | 65123448285 | $7.39 | Shop at ECS Tuning | ||||
| 03 | Knopf | 1 | 08/2010 | 65123448286 | $7.39 | Shop at ECS Tuning | ||||
| 04 | Radiohaltestift | 1 | 08/2010 | 65128370535 | $0.94 | Shop at ECS Tuning | ||||
| 05 | Steckergehäuse | 16 POL. | 1 | 08/2010 | 61138384580 | $3.78 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS mit Kabel | 0,2- 0,5 QMM | X | 08/2010 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Buchsenkontakt MQS mit Kabel | 0,5-0,75 MM² AG | X | 08/2010 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Rep.-Satz Buchsengehäuse | 12 POL. | 1 | 08/2010 | 61132471240 | Shop at ECS Tuning | ||||
| -- | Buchsengehäuse | 8 POL. | 1 | 08/2010 | 61136905788 | $1.52 | Shop at ECS Tuning | |||
| -- | Buchsenkontakt ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 08/2010 | 61138364832 | $0.35 | Shop at ECS Tuning | |||
| -- | Sicherung | 1 | 08/2010 | 61138384567 | $0.92 | Shop at ECS Tuning | ||||
| -- | Abdeckkappe | 12 POL. | 1 | 08/2010 | 61138387206 | $2.07 | Shop at ECS Tuning | |||
| 06 | Luftschlauch | RADIO 2 | 1 | 03/2009 | 51452752901 | $10.02 | Entfallen | Shop at ECS Tuning | ||
| 07 | Linsenblechschraube | 4.2X16MM | 4 | 08/2010 | 07146977107 | $0.64 | Entfallen | Shop at ECS Tuning | ||
| 08 | C-Clip Mutter | 4 | 08/2010 | 07146988451 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Schraube | 4 | 08/2010 | 51452756347 | $0.57 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
