Einzelteile Lautsprecher Stereo for BMW MINI R56 Cooper (2007)

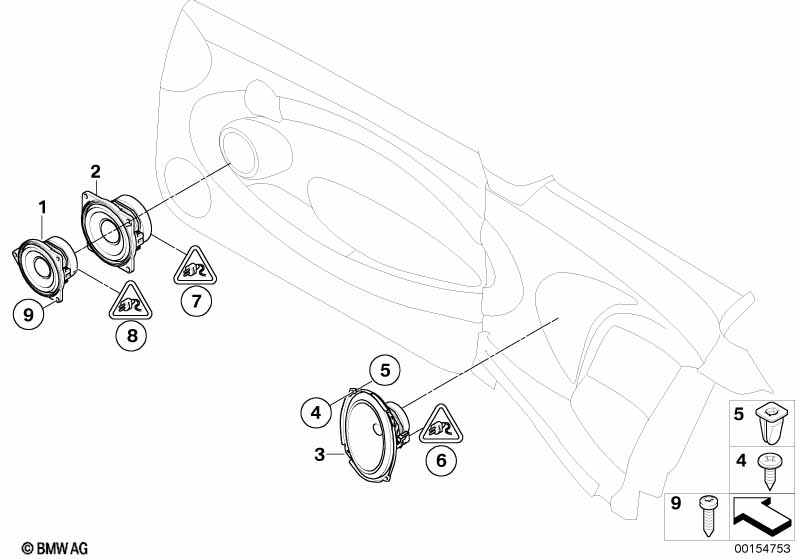

This Einzelteile Lautsprecher Stereo technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mitteltonlautsprecher Stereo | 2 | 65133428196 | $46.17 | Shop at ECS Tuning | |||||
| 02 | Mitteltonlautsprecher/Woofer Stereo | 2 | 65123450757 | $48.10 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit HiFi System Harman Kardon und MINI HiFi Lautsprechersystem |
S674A=Nein S6FDA=Nein |
|||||||||
| 03 | Tieftonlautsprecher Stereo | 2 | 65133422633 | $47.57 | Shop at ECS Tuning | |||||
| 04 | Linsenschraube | TS 5X16 | 8 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| 05 | Spreizmutter | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Buchsengehäuse | 2 POL./ SCHWARZ | 2 | 61138364508 | $0.98 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Doppelflachfederkontakt mit Kabel | 1,0 MM² | 2 | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 07 | Buchsengehäuse | 2 POL./ SCHWARZ | 2 | 61138364508 | $0.98 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Doppelflachfederkontakt mit Kabel | 1,0 MM² | 2 | 61130007437 | $2.35 | Shop at ECS Tuning | ||||
| 08 | Universal-Buchsengehäuse uncodiert | 2 POL. | 2 | 09/2014 | 61136925634 | $1.65 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Stiftkontakt MQS mit Kabel | 0,2- 0,5QMM | 4 | 09/2014 | 61130005198 | $1.82 | Shop at ECS Tuning | |||
| -- | Stiftkontakt MQS mit Kabel | 0,5-0,75 QMM AG | 4 | 09/2014 | 61130070562 | Shop at ECS Tuning | ||||
| 08 | Rep.-Satz Buchsengehäuse | 2 POL. | 2 | 61132360043 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Stiftkontakt MQS mit Kabel | 0,2- 0,5QMM | 4 | 61130005198 | $1.82 | Shop at ECS Tuning | ||||
| -- | Stiftkontakt MQS mit Kabel | 0,5-0,75 QMM AG | 4 | 61130070562 | Shop at ECS Tuning | |||||
| 09 | Linsenschraube | TS 5X16 | 14 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
