Einzelteile HiFi System Tür vorne for BMW MINI R56 Cooper (2007)

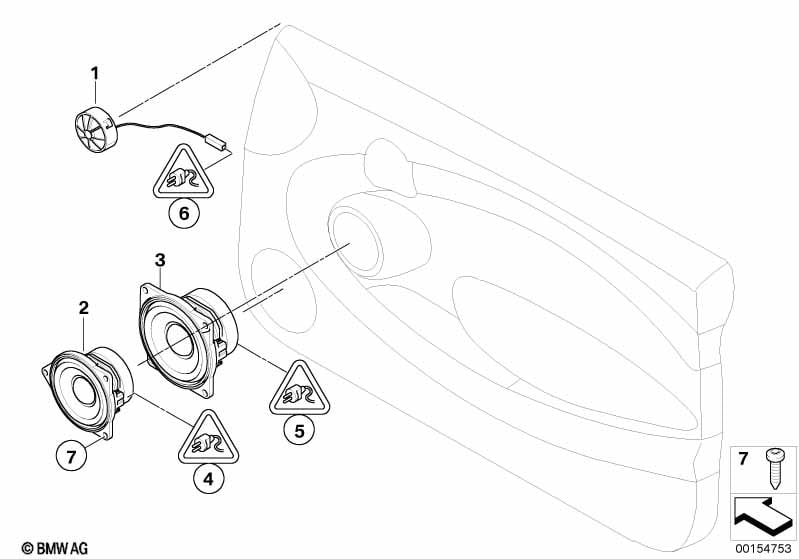

This Einzelteile HiFi System Tür vorne technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit MINI HiFi Lautsprechersystem |
S6FDA=Ja |
|||||||||
| 01 | Hochtonlautsprecher HiFi | 2 | 09/2009 | 65133422640 | $41.25 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit HiFi System Harman Kardon |
S674A=Ja |
|||||||||
| 02 | Mitteltonlautsprecher Hifi/Top-Hifi | 2 | 65139368383 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit MINI HiFi Lautsprechersystem |
S6FDA=Ja |
|||||||||
| 02 | Mitteltonlautsprecher Hifi | 2 | 09/2009 | 65139143153 | $46.35 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit HiFi System Harman Kardon und MINI HiFi Lautsprechersystem |
S674A=Ja S6FDA=Ja |
|||||||||
| 03 | Mitteltonlautsprecher/Woofer HiFi | 2 | 65139194841 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit HiFi System Harman Kardon und MINI HiFi Lautsprechersystem |
S674A=Ja S6FDA=Nein |
|||||||||
| 03 | Mitteltonlautsprecher/Woofer HiFi | 2 | 65139194841 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit HiFi System Harman Kardon und MINI HiFi Lautsprechersystem |
S674A=Nein S6FDA=Ja |
|||||||||
| 03 | Mitteltonlautsprecher/Woofer HiFi | 2 | 65139194841 | Shop at ECS Tuning | ||||||
| 07 | Linsenschraube | TS 5X16 | 12 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
