Einzelteile Dachantenne for BMW MINI R56 Cooper (2007)

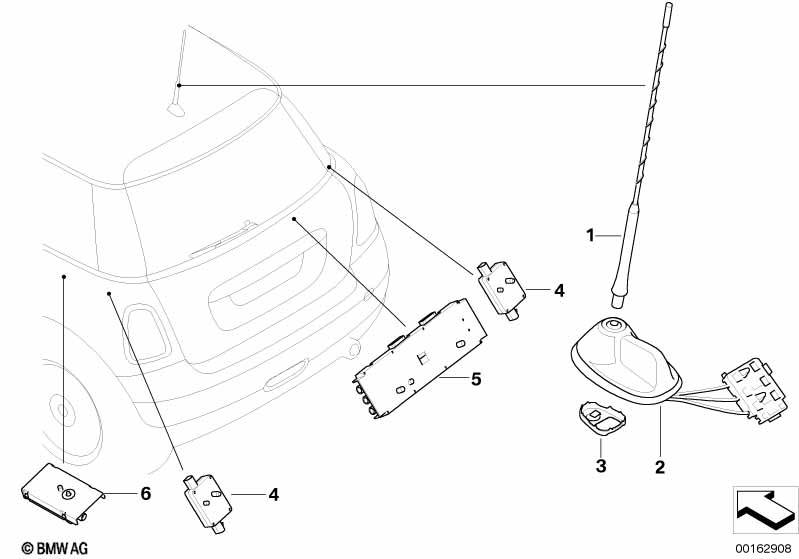

This Einzelteile Dachantenne technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Länderausführung Japan und Navigationssystem Business und Navigationssystem Professional und DAB-Tuner und Erweiterte Handyvorbereitung Bluetooth und Musik-Schnittstelle für Smartphone und MINI Navigationssystem |
L807A=Nein S606A=Nein S609A=Nein S654A=Nein S6NEA=Nein S6NFA=Nein S6UMA=Nein |
|||||||||
| 01 | Antennenstab | 1 | 65203451575 | $22.75 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und Navigationssystem Business und Navigationssystem Professional und Vorbereitung Telefoneinbau universal und Vorbereitung Handy m. Bluetooth und DAB-Tuner und Handyvorbereitung Bluetooth + USB/Audio und Musik-Schnittstelle für Smartphone und MINI Navigationssystem |
L807A=Ja S606A=Ja S609A=Ja S640A=Ja S644A=Ja S654A=Ja S6NEA=Ja S6NFA=Ja S6UMA=Ja |
|||||||||
| 01 | Antennenstab | 1 | 65203453893 | $23.42 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und Navigationssystem Professional und Vorbereitung Telefoneinbau universal und Vorbereitung Handy m. Bluetooth und DAB-Tuner und Handyvorbereitung Bluetooth + USB/Audio |
L807A=Nein S609A=Nein S640A=Nein S644A=Nein S654A=Nein S6NEA=Nein |
|||||||||
| 02 | Dachantenne | 1 | 65203442105 | $33.85 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und Navigationssystem Business und Navigationssystem Professional und Vorbereitung Telefoneinbau universal und Vorbereitung Handy m. Bluetooth und DAB-Tuner und Erweiterte Handyvorbereitung Bluetooth und Musik-Schnittstelle für Smartphone und MINI Navigationssystem |
L807A=Ja S606A=Ja S609A=Ja S640A=Ja S644A=Ja S654A=Ja S6NEA=Ja S6NFA=Ja S6UMA=Ja |
|||||||||
| 02 | Dachantenne | AM/FM/TEL/GPS | 1 | 65203456088 | Shop at ECS Tuning | |||||
| 03 | Halter Antennenfuss | 1 | 65203456141 | Shop at ECS Tuning | ||||||
| 04 | Sperrkreis | 2 | 65246990090 | $17.86 | Shop at ECS Tuning | |||||
| 05 | Antennenverstärker Diversity | 1 | 09/2008 | 65203416765 | $139.10 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 05 | Antennenverstärker Diversity | 1 | 01/2013 | 65203416767 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit TV-Funktion oder DAB-Tuner |
S601A=Ja S654A=Ja |
|||||||||
| 05 | Antennenverstärker Diversity | 1 | 02/2013 | 65203415414 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Einzelteile Dachantenne?
- This technical diagram illustrates the Einzelteile Dachantenne within the Audio, Navigation, Elektroniksysteme group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Antennenstab (Part #65203451575).
- Which models use the hardware listed in this Einzelteile Dachantenne?
- The hardware and components featured in the Einzelteile Dachantenne are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Antennenstab (65203451575) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Einzelteile Dachantenne assembly?
- Each item in the Einzelteile Dachantenne corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Antennenstab by locating its position on the schematic, which then links to the official BMW part number 65203451575 for the Audio, Navigation, Elektroniksysteme section.
