Einzelteile CCC for BMW MINI R56 Cooper (2007)

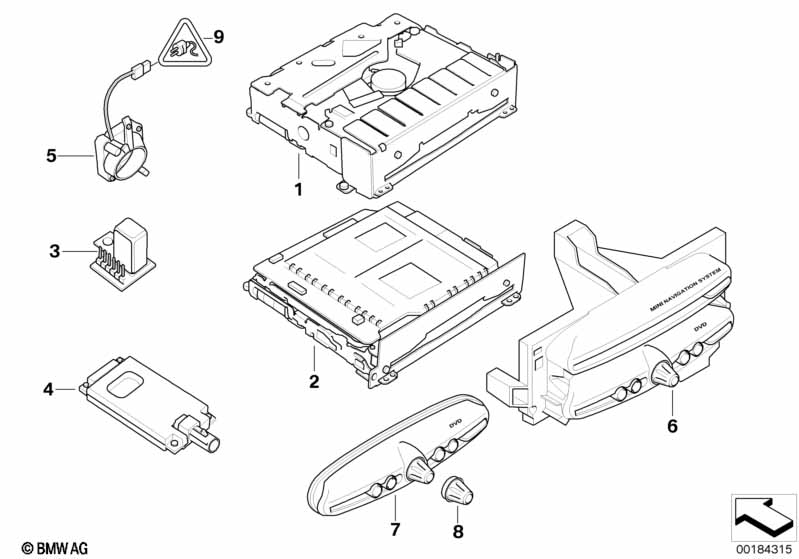

This Einzelteile CCC technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Bordmonitor mit TV oder Navigationssystem Professional |
S602A=Ja S609A=Ja |
||||||||
| 01 | CD Laufwerk | 1 | 08/2010 | 65839182158 | $304.70 | Entfallen, +Pfand | Shop at ECS Tuning | |||
| 02 | DVD-Laufwerk | 1 | 12/2009 | 65839197611 | $775.02 | Entfallen, +Pfand | Shop at ECS Tuning | |||
| 02 | DVD-Laufwerk | 1 | 08/2010 | 65839241764 | Entfallen | Shop at ECS Tuning | ||||
| 02 | DVD-Laufwerk | 1 | 08/2010 | 65839273195 | Shop at ECS Tuning | |||||
| 04 | Hip-Modul | 1 | 08/2010 | 65839122937 | $292.42 | Entfallen | Shop at ECS Tuning | |||
| 05 | Elektrolüfter | 1 | 08/2010 | 65836933200 | $70.35 | Shop at ECS Tuning | ||||
| 06 | Frontblende CD | 1 | 08/2010 | 65839133789 | $286.29 | Shop at ECS Tuning | ||||
| 07 | Blende | 1 | 08/2010 | 65839133794 | $240.98 | Shop at ECS Tuning | ||||
| 08 | Drehknopf | 1 | 08/2010 | 65833448385 | $17.85 | Shop at ECS Tuning | ||||
| 09 | Universal-Stiftgehäuse uncodiert | 3 POL. | 1 | 08/2010 | 61136931929 | $2.00 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Stiftkontakt MQS mit Kabel | 0,2- 0,5QMM | 3 | 08/2010 | 61130005198 | $1.82 | Shop at ECS Tuning | |||
| -- | Stiftkontakt MQS mit Kabel | 0,5-0,75 QMM AG | 3 | 08/2010 | 61130070562 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
