Active Sound Design for BMW MINI F56 JCW (2021)

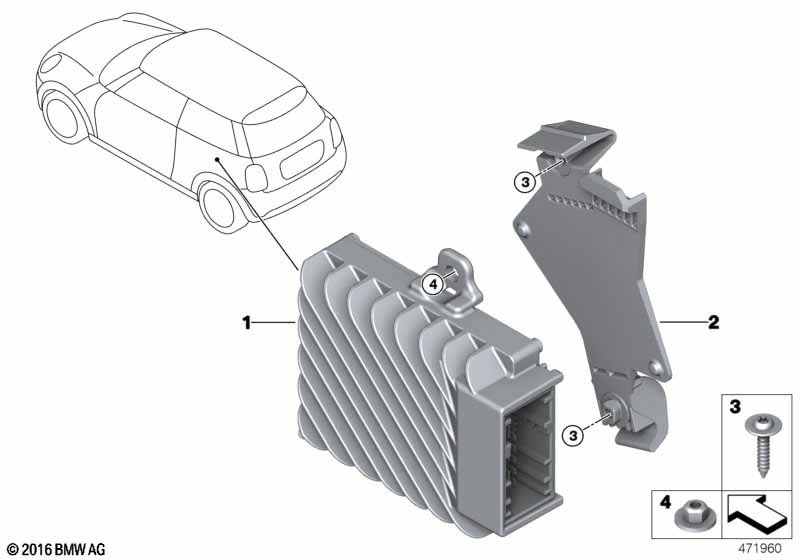

This Active Sound Design technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit MINI Driving Modes |
S4VAA=Ja |
|||||||||
| 01 | Steuergerät Active Sound Design | 1 | 65125A4E5E9 | Shop at ECS Tuning | ||||||
| 02 | Halter | ASD | 1 | 65159264551 | Shop at ECS Tuning | |||||
| 03 | Linsenschraube mit Unterlegscheibe | DELTA PT4X20 | 2 | 07149185673 | Shop at ECS Tuning | |||||
| 03 | Linsenschraube gewindefurchend | M5X12 ISA 25 | 2 | 66519245818 | Shop at ECS Tuning | |||||
| 04 | Sechskantmutter mit Scheibe | M6-8-ZNNIV SI | 2 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 JCW Active Sound Design?
- This technical diagram illustrates the Active Sound Design within the Audio, Navigation, Elektroniksysteme group for the MINI F56 JCW produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Steuergerät Active Sound Design (Part #65125A4E5E9).
- Which models use the hardware listed in this Active Sound Design?
- The hardware and components featured in the Active Sound Design are specific to the MINI F56 JCW produced during 2021. These technical specifications ensure that parts like the Steuergerät Active Sound Design (65125A4E5E9) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Active Sound Design assembly?
- Each item in the Active Sound Design corresponds to the numbered list below the illustration. For the MINI F56 JCW, you can identify the Steuergerät Active Sound Design by locating its position on the schematic, which then links to the official BMW part number 65125A4E5E9 for the Audio, Navigation, Elektroniksysteme section.
