Einzelteile Lautsprecher Tür vorne for BMW 7 Series G70 740i (2025)

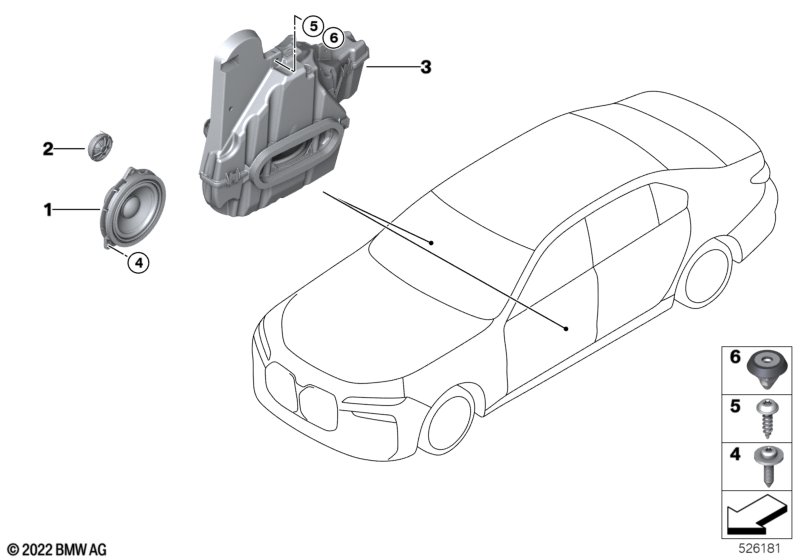

This Einzelteile Lautsprecher Tür vorne technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Bowers & Wilkins High End Sound System |
S6F1A=Nein |
|||||||||
| 01 | Mitteltonlautsprecher | ALEV 3 | 2 | 65135A0F467 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 01 | Mitteltonlautsprecher | ALEV 4 | 2 | 65135A12120 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Bowers & Wilkins High End Sound System |
S6F1A=Nein |
|||||||||
| 02 | Hochtonlautsprecher | ALEV 3 | 2 | 65135A07EA6 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 02 | Hochtonlautsprecher | ALEV 4 | 2 | 65139350327 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Bowers & Wilkins High End Sound System |
S6F1A=Nein |
|||||||||
| 03 | Tieftonlautsprecher Compound Tür vo.li. | ALEV 3 | 1 | 65135A2FE31 | Shop at ECS Tuning | |||||
| 03 | Tieftonlautsprecher Compound Tür vo.re. | ALEV 3 | 1 | 65135A2FE32 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 03 | Tieftonlautsprecher Compound Tür vo.li. | ALEV 4 | 1 | 65135A2FE51 | Shop at ECS Tuning | |||||
| 03 | Tieftonlautsprecher Compound Tür vo.re. | ALEV 4 | 1 | 65135A2FE52 | Shop at ECS Tuning | |||||
| 04 | Schraube | V-TS5X20 ZNS3 | 12 | 51119908446 | Shop at ECS Tuning | |||||
| 05 | Linsenschraube | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
| 06 | Spreizmutter | 6 | 07147429950 | Shop at ECS Tuning | ||||||
