Elektrikteile Airbag for BMW MINI F66 JCW

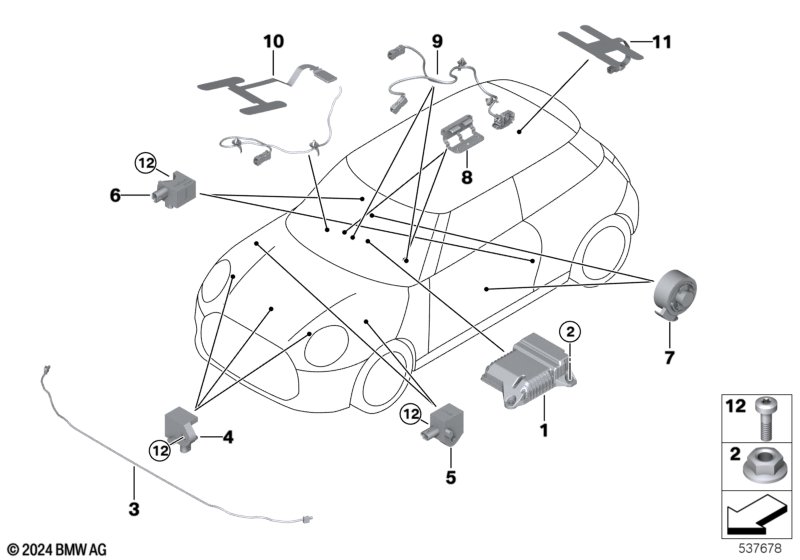

This Elektrikteile Airbag technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Airbagsteuergerät | WE_MAX | 1 | 65775B5A0F1 | Shop at ECS Tuning | |||||
| 02 | Sechskantmutter | M6-8-SC-ZNNIV S | 3 | 34506859776 | Shop at ECS Tuning | |||||
| 04 | Beschleunigungssensor | 3 | 65779496817 | Shop at ECS Tuning | ||||||
| 05 | Beschleunigungssensor | 2 | 65775A2D769 | Shop at ECS Tuning | ||||||
| 06 | Beschleunigungssensor | 2 | 65779496815 | Shop at ECS Tuning | ||||||
| 07 | Sensor Tür | 2 | 65775A67299 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Sitzverstellung elektrisch mit Memory |
S459A=Nein |
|||||||||
| 08 | Magnet Sitzposition | L/R | 2 | 65779437742 | Shop at ECS Tuning | |||||
| 09 | Sensor Sitz | L/R | 2 | 65779437741 | Shop at ECS Tuning | |||||
| Sitzbelegungserkennung im Sitzkissen integriert |
||||||||||
| 10 | Teil nicht separat erhältlich | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 12 | Flachkopfschraube | M6X20-8.8-ZNNIV | 5 | 07119907517 | Shop at ECS Tuning | |||||
