Zentralbass for BMW MINI F66 JCW

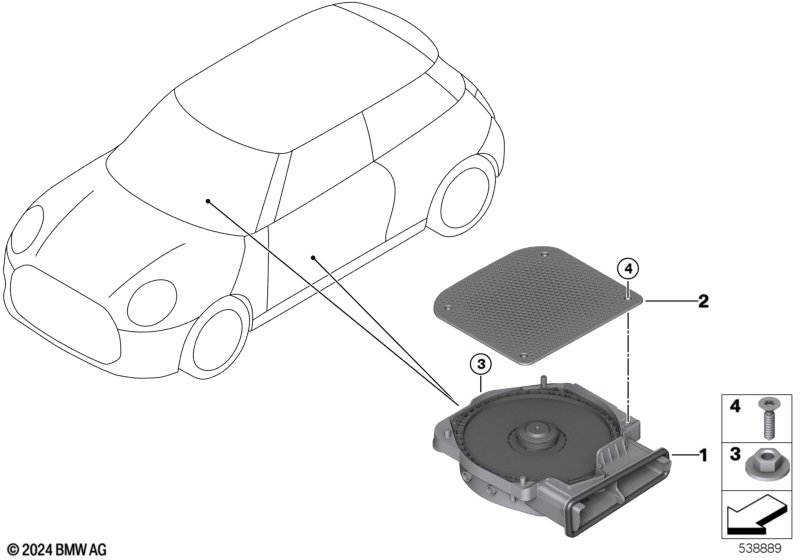

This Zentralbass technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zentralbass links | ALEV 3 | 1 | 65135A63FF5 | NoS | Shop at ECS Tuning | ||||
| 01 | Zentralbass rechts | ALEV 3 | 1 | 65135A63FF6 | NoS | Shop at ECS Tuning | ||||
| 02 | Blende | CENTRALBASS | 2 | 65132622499 | Shop at ECS Tuning | |||||
| 03 | Sechskantmutter mit Scheibe | M6 | 4 | 07147311066 | Shop at ECS Tuning | |||||
| 04 | Senkschraube | 8 | 51337068211 | $0.19 | Shop at ECS Tuning |
Ergänzungen
- NoS = No Stock
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F66 JCW Zentralbass?
- This technical diagram illustrates the Zentralbass within the Audio, Navigation, Elektroniksysteme group for the MINI F66 JCW. It provides a detailed exploded view of the components, identifying key parts such as the Zentralbass links (Part #65135A63FF5).
- Which models use the hardware listed in this Zentralbass?
- The hardware and components featured in the Zentralbass are specific to the MINI F66 JCW. These technical specifications ensure that parts like the Zentralbass links (65135A63FF5) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zentralbass assembly?
- Each item in the Zentralbass corresponds to the numbered list below the illustration. For the MINI F66 JCW, you can identify the Zentralbass links by locating its position on the schematic, which then links to the official BMW part number 65135A63FF5 for the Audio, Navigation, Elektroniksysteme section.
