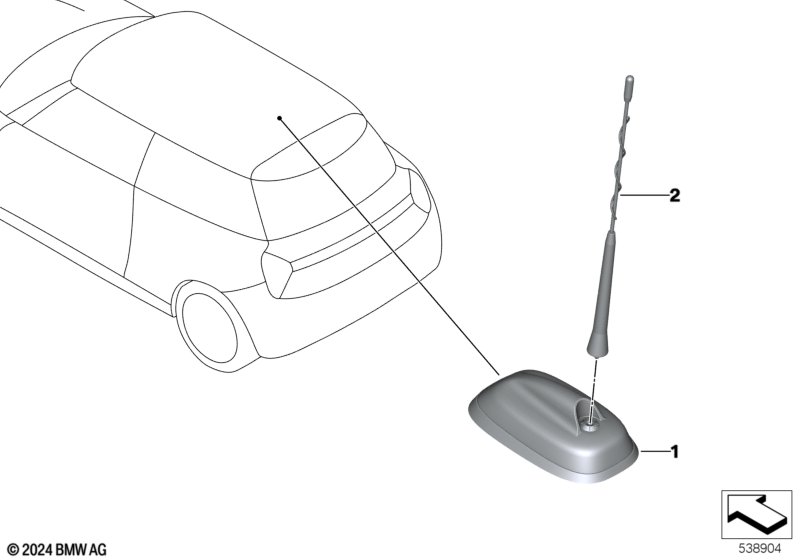

Einzelteile Antenne for BMW MINI F66 JCW
This Einzelteile Antenne technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Länderausführung Japan und DAB-Tuner und Personal eSIM |
L807A=Nein S654A=Nein S6PAA=Nein |
|||||||||
| 01 | Antennenfuß | AM-FM/GNSS | 1 | 65205A79379 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und DAB-Tuner und Personal eSIM |
L807A=Ja S654A=Nein S6PAA=Ja |
|||||||||
| 01 | Antennenfuß | AM-FM/TEL/GNSS | 1 | 65205A79399 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und DAB-Tuner und Personal eSIM |
L807A=Ja S654A=Nein S6PAA=Nein |
|||||||||
| 01 | Antennenfuß | AM-FM-JP/GNSS | 1 | 65205A79398 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und DAB-Tuner und Personal eSIM |
L807A=Nein S654A=Nein S6PAA=Ja |
|||||||||
| 01 | Antennenfuß | AM-FM/TEL/GNSS | 1 | 65205A79397 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und DAB-Tuner und Personal eSIM |
L807A=Nein S654A=Ja S6PAA=Ja |
|||||||||
| 01 | Antennenfuß | FM/DAB/TEL/GNSS | 1 | 65205A79390 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und DAB-Tuner und Personal eSIM |
L807A=Nein S654A=Ja S6PAA=Nein |
|||||||||
| 01 | Antennenfuß | AM-FM/DAB/GNSS | 1 | 65205A79380 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Nein |
|||||||||
| 02 | Antennenstab | AM-FM/DAB/TEL | 1 | 65205A36277 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan |
L807A=Ja |
|||||||||
| 02 | Antennenstab | AM-FM/TEL-JP | 1 | 65205A36278 | Shop at ECS Tuning | |||||
