Night Vision Kamera for BMW 7 Series F02 750Li (2011)

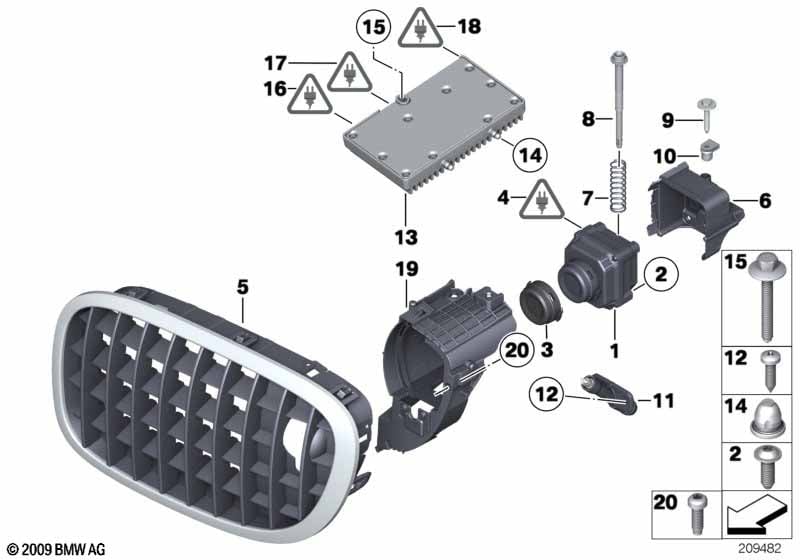

This Night Vision Kamera technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Nicht passend für die Länder Kuba, Iran, Syrien, Libyen, Sudan und Nord Korea. Für Fahrzeuge mit Night Vision mit Personenerkennung |
S6UKA=Ja |
||||||||
| 01 | Night Vision Kamera | 1 | 66549203322 | $4652.02 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Halter Night Vision Camera | NIVI | 1 | 51137211665 | Shop at ECS Tuning | |||||
| -- | Aufnahme | NIVI | 1 | 51117163471 | $9.58 | Shop at ECS Tuning | ||||
| 02 | Linsenschraube selbstschneidend | M5X12 | 3 | 07149241365 | Shop at ECS Tuning | |||||
| 03 | Abdeckung Linse | 1 | 66549175668 | Shop at ECS Tuning | ||||||
| 04 | Kabelsatz Frontende | 1 | 03/2010 | 61129229672 | Shop at ECS Tuning | |||||
| 05 | Ziergitter Front links | NIVI | 1 | 51137203197 | $100.88 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit M Aerodynamikpaket |
S715A=Ja |
|||||||||
| 05 | Ziergitter Front links | M - NIVI | 1 | 51138035973 | Shop at ECS Tuning | |||||
| 06 | Aufnahme | NIVI | 1 | 51117163471 | $9.58 | Shop at ECS Tuning | ||||
| 07 | Druckfeder | NIVI | 1 | 07147222655 | Shop at ECS Tuning | |||||
| 08 | Einstellschraube | NIVI | 1 | 07147220824 | $8.87 | Shop at ECS Tuning | ||||
| 09 | Sechskantschraube mit Scheibe | TS5X35 D=18 | 1 | 07147055085 | Shop at ECS Tuning | |||||
| 10 | Kunststoffmutter | 1 | 07147212877 | Shop at ECS Tuning | ||||||
| 11 | Hochdruckdüse | 1 | 61677149466 | Shop at ECS Tuning | ||||||
| 12 | Linsenschraube | 2 | 07147246086 | Shop at ECS Tuning | ||||||
| 13 | Steuergerät Night Vision Kamera | 1 | 66549286713 | Shop at ECS Tuning | ||||||
| 14 | Snap-Lock-Kupplung | 2 | 46637691016 | $1.54 | Shop at ECS Tuning | |||||
| 15 | Sechskantschraube mit Scheibe | M6X45-U1 | 2 | 07119905547 | $1.17 | Shop at ECS Tuning | ||||
| 16 | Rep.-Satz Buchsengehäuse | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| -- | Rep.-Satz Buchsengehäuse | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| 17 | Rep.-Satz Buchsengehäuse | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt MQS ELA mit Kabel | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
| -- | Rep.-Satz Buchsengehäuse | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| 19 | Halter Night Vision Camera | NIVI | 1 | 51137211665 | Shop at ECS Tuning | |||||
| 20 | Linsenschraube mit Bund | NIVI | 3 | 07149113515 | Shop at ECS Tuning | |||||
