Anhängerkupplung abnehmbar for BMW MINI Countryman F60 LCI Cooper (2023)

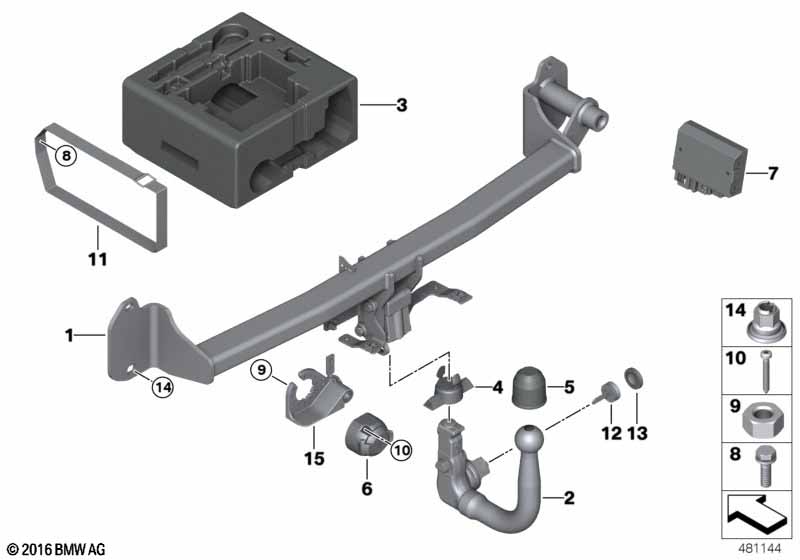

This Anhängerkupplung abnehmbar technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Länderausführung Australien |
L810A=Nein |
||||||||
| Nicht für Ersatz Anhängerkupplung 750kg verwenden. |
||||||||||
| 01 | Anhängerkupplung mit abnehmb. Kugel | 1 | 71606885352 | Shop at ECS Tuning | ||||||
| 02 | Kugelkopf abnehmbar | 1 | 51129463513 | Shop at ECS Tuning | ||||||
| 03 | Ablageschale | 1 | 71606877572 | Shop at ECS Tuning | ||||||
| 04 | Verschlussstopfen | 1 | 51129478015 | Shop at ECS Tuning | ||||||
| 05 | Schutzkappe Kugelkopf | 1 | 71601246076 | Shop at ECS Tuning | ||||||
| 06 | Steckdose | 1 | 61131378999 | $76.67 | Shop at ECS Tuning | |||||
| 07 | Steuergerät Anhängerkupplung | 1 | 63119463373 | Shop at ECS Tuning | ||||||
| 08 | Sechskantschraube mit Scheibe | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Sechskantmutter | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Flachkopfschraube | M5 X 35 | 3 | 07119904582 | Shop at ECS Tuning | |||||
| 11 | Klettband | 1 | 71106862422 | Shop at ECS Tuning | ||||||
| 12 | Schlüssel (Code) | 1 | 71606775871 | Shop at ECS Tuning | ||||||
| 13 | Abdeckkappe | 1 | 71606873893 | Shop at ECS Tuning | ||||||
| 14 | Sechskantmutter | M12X1,5 | 8 | 71606795381 | Shop at ECS Tuning | |||||
| 15 | Steckdosenhalter | 1 | 71606885879 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 LCI Cooper Anhängerkupplung abnehmbar?
- This technical diagram illustrates the Anhängerkupplung abnehmbar within the Ausrüstungsteile group for the MINI Countryman F60 LCI Cooper produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Anhängerkupplung mit abnehmb. Kugel (Part #71606885352).
- Which models use the hardware listed in this Anhängerkupplung abnehmbar?
- The hardware and components featured in the Anhängerkupplung abnehmbar are specific to the MINI Countryman F60 LCI Cooper produced during 2023. These technical specifications ensure that parts like the Anhängerkupplung mit abnehmb. Kugel (71606885352) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Anhängerkupplung abnehmbar assembly?
- Each item in the Anhängerkupplung abnehmbar corresponds to the numbered list below the illustration. For the MINI Countryman F60 LCI Cooper, you can identify the Anhängerkupplung mit abnehmb. Kugel by locating its position on the schematic, which then links to the official BMW part number 71606885352 for the Ausrüstungsteile section.
