M Performance αξεσουάρ αεροδυναμικής for BMW 3 Series E46 318i (2001)

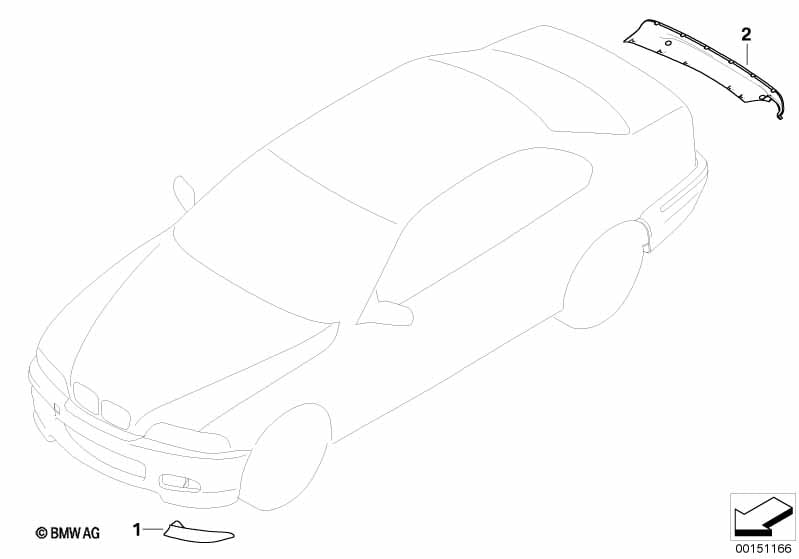

This M Performance αξεσουάρ αεροδυναμικής technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Προσοχή: Οι οδηγίες τοποθέτησης δεν περιλαμβάνονται στο σετ εκ των υστέρων τοποθέτησης. Οι εκάστοτε τρέχουσες ενημερωμένες οδηγίες τοποθέτησης πρέπει να εκτυπώνονται από τον Ηλεκτρονικό Κατάλογο Εξαρτημάτων (ΗΚΕ) και να παραδίδονται στον πελάτη. Τα εξαρτήματα που δεν αναφέρονται στις οδηγίες τοποθέτησης, τοποθετούνται σύμφωνα με το ISTA/AIR. Για οχήματα με Πακέτο αεροδυναμικών βοηθημάτων |
SZE3A=Όχι |
||||||||
| Για οχήματα με Πακέτο αεροδυναμικών βοηθημάτων |
S716A=Ναι |
|||||||||
| 01 | Πρόσθετο τμήμα μπροστινής ποδιάς δεξιά | CARBON 245G/M² | 1 | 51190414342 | $303.95 | ΛΗΞΗ, +χρέωση | Shop at ECS Tuning | |||
| 01 | Πρόσθετο τμήμα μπροστ. ποδιάς αριστερά | CARBON 245G/M² | 1 | 51190414341 | $303.95 | ΛΗΞΗ, +χρέωση | Shop at ECS Tuning | |||
| μόνο σε συνδυασμό με | ||||||||||
| -- | Πιστολέτο σωληναρίων | 1 | 83190406983 | $113.64 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| -- | Σετ κόλλας 2K | SET | 1 | 83192453908 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| Για οχήματα με Κοτσαδόρος αφαιρούμενος και Πακέτο αεροδυναμικών βοηθημάτων |
S235A=Όχι S716A=Ναι |
|||||||||
| 02 | Λωρίδα κάλυψης διαχύτη | CARBON | 1 | 51120404942 | $657.00 | ΛΗΞΗ, +χρέωση | Shop at ECS Tuning | |||
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
- +χρέωση = επιπλέον βασική χρέωση (δυνατότητα επιστροφής του παλαιού ανταλλακτικού)
