Κέλυφος κινητήρα for BMW R45-R65LS..78-85 R65LS

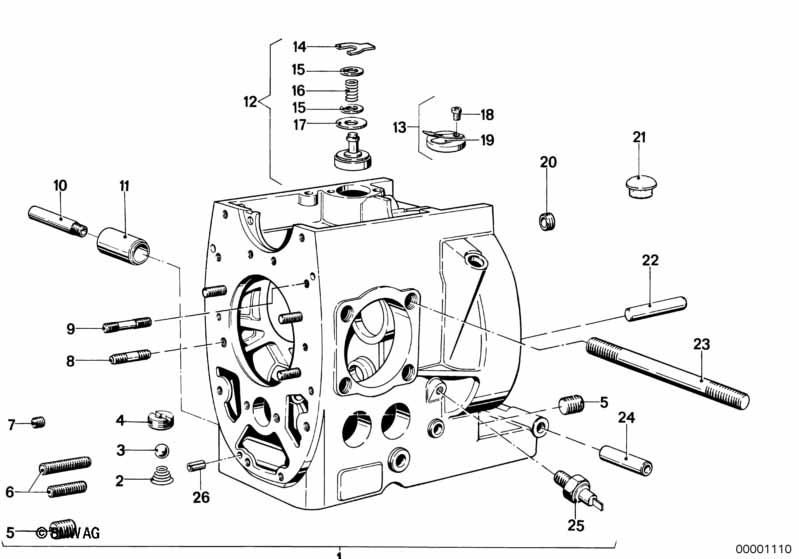

This Κέλυφος κινητήρα technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Κέλυφος κινητήρα | 1 | 09/1980 | 11111337343 | ΛΗΞΗ, +χρέωση | Shop at ECS Tuning | ||||
| 02 | Ελατήριο πίεσης | L = 11MM | 1 | 02/1985 | 11111250159 | $6.89 | Shop at ECS Tuning | |||
| 02 | Ελατήριο πίεσης | L = 16MM | 1 | 02/1985 | 11111337576 | $10.01 | Shop at ECS Tuning | |||
| 03 | Σφαίρα | 8G20 | 1 | 07119986280 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Πώμα στεγανοποίησης | M12X1.5 | 1 | 02/1985 | 11111250157 | $3.15 | Shop at ECS Tuning | |||
| 04 | Πώμα στεγανοποίησης | M14X1.5 | 1 | 02/1985 | 11111337733 | $12.49 | Shop at ECS Tuning | |||
| 05 | Πώμα στεγανοποίησης | M12X1 | 2 | 07/1991 | 11111338645 | $19.46 | Shop at ECS Tuning | |||
| 07 | Πώμα στεγανοποίησης | M8 | 1 | 11111250188 | $7.85 | Shop at ECS Tuning | ||||
| 08 | Ακέφαλος κοχλίας | M8X55 | 1 | 02/1985 | 07129908137 | $0.47 | Shop at ECS Tuning | |||
| 08 | Κοχλίας εξαγωνικής κεφαλής | M8X45-8.8-ZNS3 | 1 | 02/1985 | 07119902955 | $0.62 | Shop at ECS Tuning | |||
| 09 | Ακέφαλος κοχλίας | M6/M8X50-8.8-ZN | 3 | 11111252310 | $2.80 | Shop at ECS Tuning | ||||
| 10 | Σωλήνας | L=38MM | 1 | 11111263342 | $6.81 | Shop at ECS Tuning | ||||
| 11 | Εξωτερικός σωλήνας | 1 | 11111338203 | $22.61 | Shop at ECS Tuning | |||||
| 13 | Βαλβίδα αντεπιστροφής | 1 | 11111335712 | $39.19 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 14 | Δακτύλιος ασφαλείας | D5,0 | 1 | 07129934312 | $0.56 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 15 | Ροδέλα | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 15 | Ροδέλα | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Ελατήριο πίεσης | 1 | 11111251228 | $0.91 | Shop at ECS Tuning | |||||
| 18 | Βίδα οβάλ κεφαλής | M3X8-4.8-H-ZN | 1 | 07119907602 | $0.62 | Shop at ECS Tuning | ||||
| 19 | Μεμβράνη | 1 | 11111335711 | $2.60 | Shop at ECS Tuning | |||||
| 20 | Τάπα στεγανοποίησης | D=25MM | 2 | 07119937281 | $0.86 | Shop at ECS Tuning | ||||
| 21 | Πώμα μαύρο | 1 | 11111744327 | $0.82 | Shop at ECS Tuning | |||||
| 22 | Πείρος σύσφιξης | 4X26-ST | 2 | 07119941433 | $0.42 | Shop at ECS Tuning | ||||
| 22 | Κυλινδρικός πείρος | 4X26,8MM | 2 | 11111250156 | $1.71 | Shop at ECS Tuning | ||||
| 23 | Ακέφαλος κοχλίας | M10X269 | 2 | 11111335107 | $24.34 | Shop at ECS Tuning | ||||
| 23 | Ακέφαλος κοχλίας | M10X247 | 6 | 11111335108 | Shop at ECS Tuning | |||||
| 24 | Σωλήνας αποστάτης | 108MM | 1 | 11111259620 | $14.54 | Shop at ECS Tuning | ||||
| 24 | Σωλήνας αποστάτης | 110MM | 1 | 11111337670 | $14.54 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 25 | Διακόπτης πίεσης λαδιού | M12X1.5 | 1 | 61311243414 | $13.31 | +χρέωση | Shop at ECS Tuning | |||
| 26 | Πείρος σύσφιξης | 6X16 | 1 | 07119941485 | $0.61 | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
- +χρέωση = επιπλέον βασική χρέωση (δυνατότητα επιστροφής του παλαιού ανταλλακτικού)
