Μηχαν.ελέγχ.βαλβ.-εκκεντροφόρος/βαλβίδες for BMW 3 Series E36 318ti (2000)

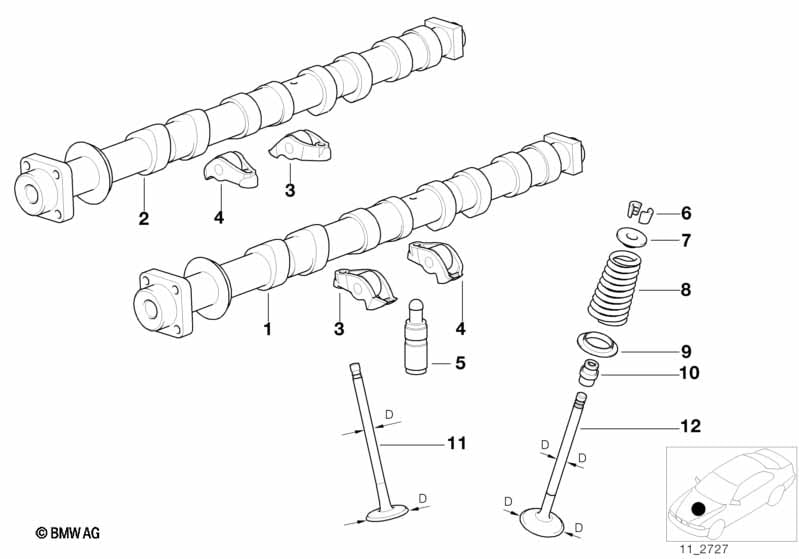

This Μηχαν.ελέγχ.βαλβ.-εκκεντροφόρος/βαλβίδες technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Εκκεντροφόρος άξονας βαλβίδων εισαγωγής | 1 | 11311247961 | $715.29 | Shop at ECS Tuning | |||||
| 02 | Εκκεντροφόρος άξονας βαλβίδων εξαγωγής | 1 | 11311247962 | $765.43 | Shop at ECS Tuning | |||||
| 03 | Ζύγωθρο με κυλινδράκι αριστερά | 8 | 11331247773 | $33.04 | Shop at ECS Tuning | |||||
| 04 | Ζύγωθρο με κυλινδράκι δεξιά | 8 | 11331247774 | $33.04 | Shop at ECS Tuning | |||||
| 05 | Στοιχείο εξισορρόπησης | X | 11331712010 | $32.50 | Shop at ECS Tuning | |||||
| 06 | Κωνική ασφάλεια βαλβίδας | D=6 | X | 11341461405 | $1.34 | Shop at ECS Tuning | ||||
| 07 | Πιατάκι ελατηρίου επάνω | X | 11341432453 | $3.77 | Shop at ECS Tuning | |||||
| 08 | Ελατήριο βαλβίδας | X | 11341403709 | $7.88 | Shop at ECS Tuning | |||||
| 09 | Πιατάκι ελατηρίου κάτω | X | 11341403612 | $3.77 | Shop at ECS Tuning | |||||
| 10 | Σετ επισκευής τσιμούχα στελέχους βαλβίδ. | 2 | 11349065438 | $35.29 | Shop at ECS Tuning | |||||
| 11 | Βαλβίδα εισαγωγής | 33,0/5,94MM | 8 | 11341739822 | Shop at ECS Tuning | |||||
| 11 | Βαλβ.εισαγ.με αυξημ.πάχος στελέχ. +0,2mm | 33,0/6,15MM | 8 | 11341739838 | $114.53 | +χρέωση | Shop at ECS Tuning | |||
| 11 | Βαλβ.εισαγ.με αυξημ.πάχος στελέχ. +0,1mm | 33,0/6,04MM | 8 | 11347505247 | $44.04 | Shop at ECS Tuning | ||||
| 12 | Βαλβίδα εξαγωγής | 30,5/5,94MM | 8 | 11341739823 | Shop at ECS Tuning | |||||
| 12 | Βαλβίδα εξαγ. με προσθήκη στελέχ. +0,1mm | 30,5/6,04MM | 8 | 11341739833 | $156.19 | +χρέωση | Shop at ECS Tuning | |||
| 12 | Βαλβίδα εξαγ. με προσθήκη στελέχ. +0,2mm | 30,5/6,14 | 8 | 11341739839 | $156.19 | +χρέωση | Shop at ECS Tuning |
Σημειώσεις
- +χρέωση = επιπλέον βασική χρέωση (δυνατότητα επιστροφής του παλαιού ανταλλακτικού)
