Κάλυμμα αλυσίδας χρονισμού for BMW 3 Series F30 LCI 330e (2016)

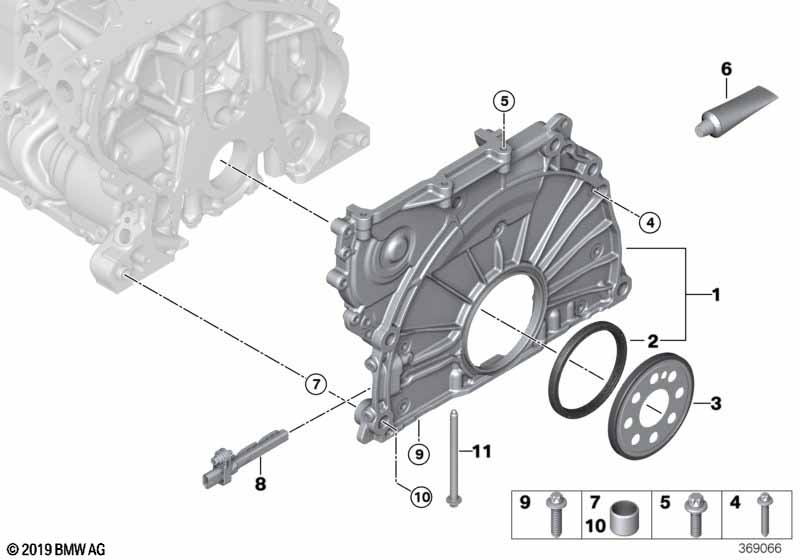

This Κάλυμμα αλυσίδας χρονισμού technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Κάλυμμα αλυσίδας χρονισμού | 1 | 11148576066 | Shop at ECS Tuning | ||||||
| Απαιτείται για την επισκευή | ||||||||||
| -- | Υγρή στεγανοποίηση Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Στεγανοποιητικός δακτύλιος αξόνων | 90X104X9MM | 1 | 11148664904 | Shop at ECS Tuning | |||||
| 03 | Οδοντωτός δίσκος αισθητήρα | 1 | 11148605104 | Shop at ECS Tuning | ||||||
| 04 | Κοχλίας ASA | M6X31 | 11 | 11147797493 | Shop at ECS Tuning | |||||
| 05 | Κοχλίας ASA | M8X40 | 3 | 07119907475 | Shop at ECS Tuning | |||||
| 06 | Υγρή στεγανοποίηση Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 07 | Χιτώνιο προσαρμογής | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Αισθητήρας στροφαλοφόρου άξονα | 1 | 13627806782 | Shop at ECS Tuning | ||||||
| 09 | Κοχλίας ASA | M8X30 | 2 | 11138592611 | Shop at ECS Tuning | |||||
| 10 | Χιτώνιο προσαρμογής | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 11 | Κοχλίας Torx | M8X110 | 2 | 11137800625 | Shop at ECS Tuning | |||||
