Τροφοδοσία λαδιού/αντλία λαδιού με μοτέρ for BMW 5 Series E39 528i

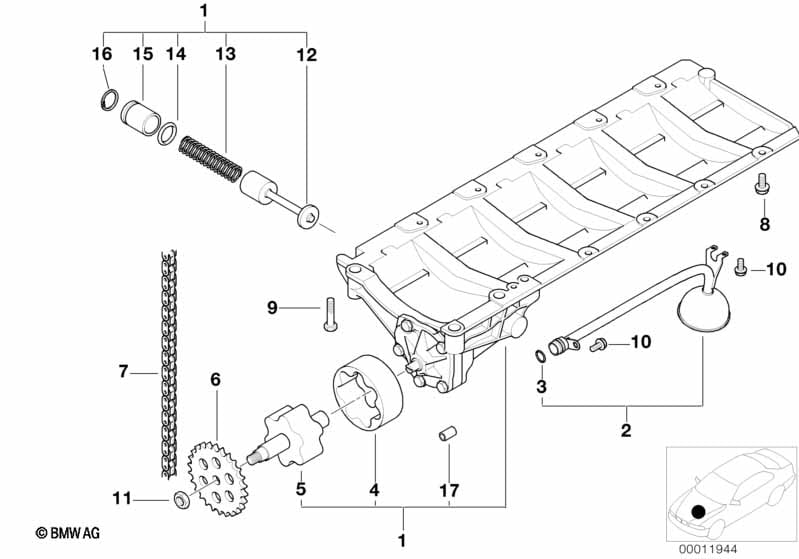

This Τροφοδοσία λαδιού/αντλία λαδιού με μοτέρ technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Αντλία λαδιού | 1 | 09/1998 | 01/2000 | 11417507350 | $575.71 | Shop at ECS Tuning | |||
| 02 | Σωλήνας αναρρόφησης | 1 | 09/1998 | 01/2000 | 11411432736 | $42.08 | Shop at ECS Tuning | |||
| 03 | Δακτύλιος-Ο | 21,9X2,6 | 1 | 09/1998 | 01/2000 | 11411432727 | $2.92 | Shop at ECS Tuning | ||
| 04 | Ρότορας εξωτερικ. | 1 | 09/1998 | 01/2000 | 11411432731 | $14.06 | Shop at ECS Tuning | |||
| 05 | Ρότορας εσωτερικ. | 1 | 09/1998 | 01/2000 | 11411432730 | $28.11 | +χρέωση | Shop at ECS Tuning | ||
| 06 | Αλυσοτροχός | 1 | 09/1998 | 01/2000 | 11411432737 | $19.89 | Shop at ECS Tuning | |||
| 07 | Αλυσίδα | 1 | 09/1998 | 01/2000 | 11417576915 | $30.08 | Shop at ECS Tuning | |||
| 08 | Κοχλίας εξαγωνικής κεφαλής με ροδέλα | M8X25-8.8-ZNNIV | 9 | 09/1998 | 01/2000 | 07119905394 | $0.64 | Shop at ECS Tuning | ||
| 09 | Κοχλίας εξαγωνικής κεφαλής με ροδέλα | M8X55-U1 | 3 | 09/1998 | 01/2000 | 07119905391 | $1.27 | Shop at ECS Tuning | ||
| 10 | Κοχλίας εξαγωνικής κεφαλής με ροδέλα | M6X16-U1-8.8 | 3 | 09/1998 | 01/2000 | 07119904524 | $0.25 | Shop at ECS Tuning | ||
| 11 | Εξαγωνικό περικόχλιο | M10X1-LH | 1 | 09/1998 | 01/2000 | 07119905857 | $0.36 | Shop at ECS Tuning | ||
| 12 | Βαλβίδα ελέγχου | 1 | 09/1998 | 01/2000 | 11411716410 | $6.84 | Shop at ECS Tuning | |||
| 13 | Ελικοειδές ελατήριο | 1 | 09/1998 | 01/2000 | 11417502774 | $3.50 | Shop at ECS Tuning | |||
| 14 | Δακτύλιος-Ο | 17,0X1,8MM | 1 | 09/1998 | 01/2000 | 11411722837 | $1.19 | Shop at ECS Tuning | ||
| 15 | Δακτυλίδι αποστάτης | 1 | 09/1998 | 01/2000 | 11411703950 | $1.95 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 16 | Δακτύλιος ασφαλείας | 21X1 | 1 | 09/1998 | 01/2000 | 07119934625 | $0.24 | Shop at ECS Tuning | ||
| 17 | Χιτώνιο προσαρμογής | 1 | 09/1998 | 01/2000 | 11411722839 | $1.58 | Shop at ECS Tuning |
Σημειώσεις
- +χρέωση = επιπλέον βασική χρέωση (δυνατότητα επιστροφής του παλαιού ανταλλακτικού)
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
