Βαλβίδα εμπλουτισμού for BMW 5 Series E12 518

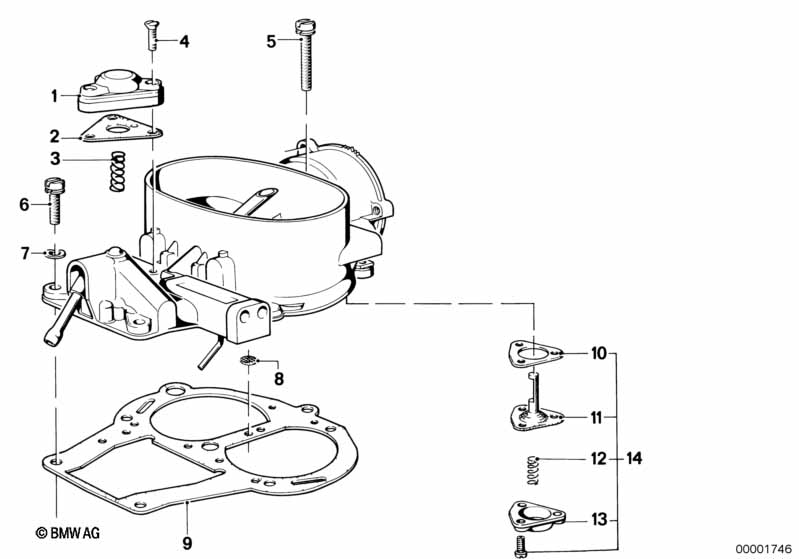

This Βαλβίδα εμπλουτισμού technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Βαλβίδα εμπλουτισμού | 1 | 07/1975 | 09/1980 | 13111269533 | $58.31 | ΛΗΞΗ | Shop at ECS Tuning | ||
| Για οχήματα με Έκδοση Σουηδίας |
=Ναι |
|||||||||
| 01 | Βαλβίδα εμπλουτισμού | 1 | 07/1975 | 09/1980 | 13111269533 | $58.31 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 02 | Στεγανοποίηση | 1 | 07/1975 | 09/1980 | 13111263341 | $1.73 | Shop at ECS Tuning | |||
| 03 | Ελατήριο πίεσης | 1 | 03/1977 | 09/1980 | 13111252679 | $1.55 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 04 | Σετ καπάκι αντλίας | 3 | 13111709124 | $123.88 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 04 | Βίδα οβάλ κεφαλής | 3 | 07/1975 | 09/1980 | 13110539264 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 05 | Κοχλίας κυλινδρικής κεφαλής | 1 | 07/1975 | 09/1980 | 13111258964 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 07 | Ελατηριωτή ροδέλα | B5 | 1 | 07/1975 | 09/1980 | 07119932098 | $0.38 | Shop at ECS Tuning | ||
| 08 | Σήτα | 1 | 07/1975 | 09/1980 | 13111258957 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 09 | Στεγανοποίηση καπακιού | 1 | 07/1975 | 09/1980 | 13111705006 | $5.87 | Shop at ECS Tuning | |||
| 10 | Στεγανοποίηση | 1 | 07/1975 | 09/1980 | 13111257194 | $1.68 | Shop at ECS Tuning | |||
| 11 | Σετ μεμβράνη | 1 | 07/1975 | 09/1980 | 13111709141 | $51.99 | Shop at ECS Tuning | |||
| 12 | Σετ μεμβράνη | 1 | 07/1975 | 09/1980 | 13111709141 | $51.99 | Shop at ECS Tuning | |||
| 13 | Καπάκι | 1 | 07/1975 | 09/1980 | 13110539246 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 13 | Σετ μεμβράνη | 1 | 07/1975 | 09/1980 | 13111709141 | $51.99 | Shop at ECS Tuning | |||
| 14 | Σετ μεμβράνη | 1 | 07/1975 | 09/1980 | 13111709141 | $51.99 | Shop at ECS Tuning | |||
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 Βαλβίδα εμπλουτισμού?
- This technical diagram illustrates the Βαλβίδα εμπλουτισμού within the Προετοιμασία καυσίμου group for the 5 Series E12 518. It provides a detailed exploded view of the components, identifying key parts such as the Βαλβίδα εμπλουτισμού (Part #13111269533).
- Which models use the hardware listed in this Βαλβίδα εμπλουτισμού?
- The hardware and components featured in the Βαλβίδα εμπλουτισμού are specific to the 5 Series E12 518. These technical specifications ensure that parts like the Βαλβίδα εμπλουτισμού (13111269533) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Βαλβίδα εμπλουτισμού assembly?
- Each item in the Βαλβίδα εμπλουτισμού corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the Βαλβίδα εμπλουτισμού by locating its position on the schematic, which then links to the official BMW part number 13111269533 for the Προετοιμασία καυσίμου section.
