Καρμπυρατέρ πρόσθετα εξαρτήματα for BMW 1502-2002tii 1600ti

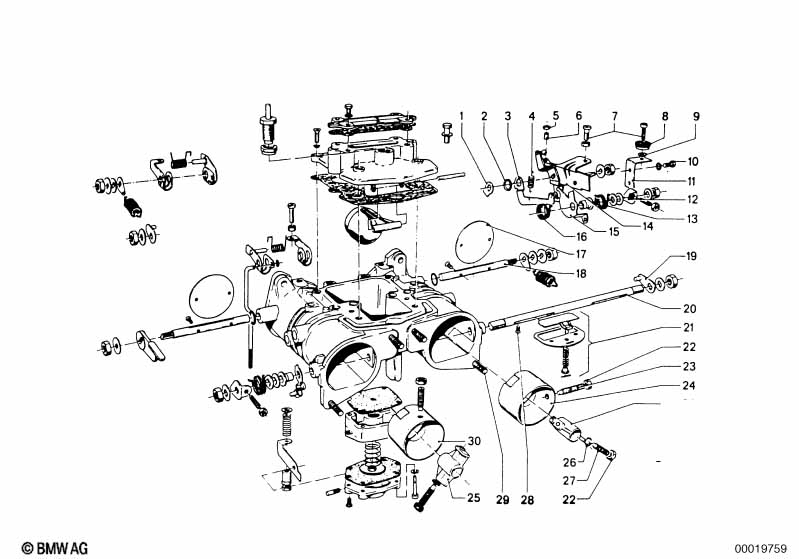

This Καρμπυρατέρ πρόσθετα εξαρτήματα technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1600ti. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 40 Phh | |||||||||
| 01 | Αναστολέας | 1 | 13111252158 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 02 | Υποδοχή | 1 | 13110639352 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 03 | Μοχλός | 1 | 13111252157 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 05 | Εξαγωνικό περικόχλιο | 1 | 13111252160 | $0.69 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 06 | Μπουζόνι | 1 | 13111252159 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 07 | Κοχλίας ρύθμισης | 2 | 13111250723 | $2.73 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 08 | Περικόχλιο | 1 | 13111250722 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 09 | Ελατηριωτή ροδέλα | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Βίδα | 2 | 13110539235 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 11 | Αναστολέας | 1 | 13111252161 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 12 | Βάση | 1 | 13110739130 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 13 | Ελατήριο στρέψης | 1 | 13110639374 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 14 | Μοχλός | 1 | 13111252156 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 15 | Μοχλός | 1 | 13110639383 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 16 | Ελατήριο στρέψης | 1 | 13110639375 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 17 | Καπάκι | 1 | 13110639304 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 18 | Άξονας | 2 | 13111252153 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 19 | Μοχλός | 2 | 13110639364 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 20 | Άξονας | HINTEN | 1 | 13110639371 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 21 | Άξονας | VORNE | 1 | 13110639372 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 23 | Κοχλίας συγκράτησης | 4 | 13110739119 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 24 | Χοάνη αέρα | D=30 | 2 | 09/1967 | 12/1968 | 13111252165 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 25 | Χοάνη αέρα | 4 | 13110639415 | $46.59 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 26 | Σετ ελατηριωτή ασφάλεια 50 | B4 | 8 | 07509063158 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 27 | Βίδα | 4 | 13110639341 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 28 | BMW Classic | 8 | 13110039762 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 29 | Πείρος | 4 | 13110639405 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 30 | Χοάνη αέρα | D=30MM | 2 | 09/1967 | 12/1968 | 13111252164 | $25.67 | ΛΗΞΗ | Shop at ECS Tuning | |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
