Αντλία καυσίμου for BMW 2500-3.3Li 3.0S

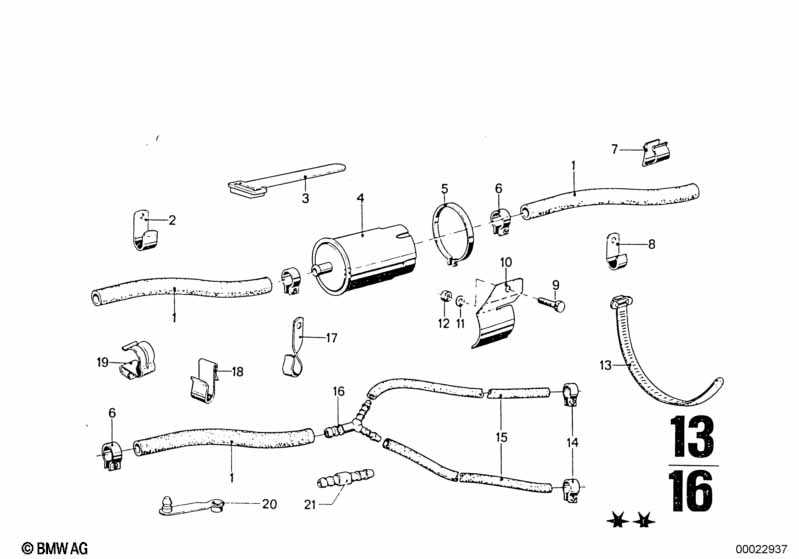

This Αντλία καυσίμου technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Εύκαμπτος σωλήνας καυσίμου | 8X13MM | X | 08/1968 | 02/1977 | 16121180409 | $20.43 | Shop at ECS Tuning | ||
| 06 | Σφιγκτήρας εύκαμπτων σωλήνων | D=12MM | 3 | 13531257243 | $2.32 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 13 | Σφιγκτήρας καλωδίων | L=292MM/B=4,8MM | 2 | 05/1971 | 02/1977 | 61131377134 | $0.77 | Shop at ECS Tuning | ||
| 14 | Σφιγκτήρας εύκαμπτων σωλήνων | L12-15 | 2 | 05/1971 | 02/1977 | 07129952104 | $1.18 | Shop at ECS Tuning | ||
| 15 | Εύκαμπτος σωλήνας καυσίμου | 6X11MM | X | 05/1971 | 02/1977 | 13311272750 | $11.62 | Shop at ECS Tuning | ||
| 16 | Εξάρτημα διανομέα | 1 | 05/1971 | 02/1977 | 16132294376 | $1.42 | Shop at ECS Tuning | |||
| 18 | Βραχίονας | 2 | 05/1971 | 02/1977 | 24111203865 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 20 | Συρματόσχοινο κλειδώματος | 70MM | 2 | 08/1968 | 02/1977 | 61131353661 | $1.37 | ΛΗΞΗ | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
