Βαλβίδα εξαερισμού ρεζερβουάρ for BMW 3 Series F30 LCI 330e (2016)

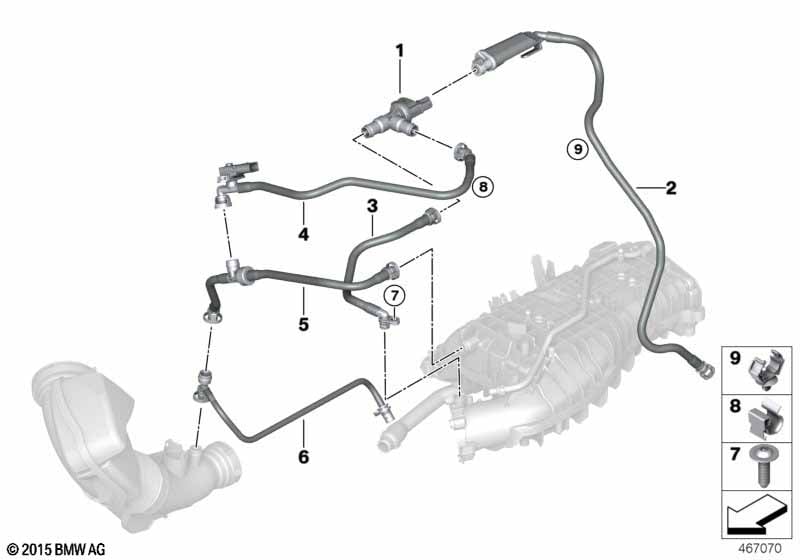

This Βαλβίδα εξαερισμού ρεζερβουάρ technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Βαλβίδα εξαερισμού ρεζερβουάρ | 1 | 13907643106 | Shop at ECS Tuning | ||||||
| 02 | Σωλήν.εξαερισμ.ρεζερβ.με σιγαστήρ.θορύβ. | 1 | 13908613138 | Shop at ECS Tuning | ||||||
| 03 | Σωλήνας εξαερισμού ρεζερβουάρ | 1 | 13907645857 | Shop at ECS Tuning | ||||||
| 04 | Σωλήνας εξαερισμού ρεζερβουάρ | 1 | 13907645858 | Shop at ECS Tuning | ||||||
| 05 | Αναρροφητικ.αστεροειδής αντλία με αγωγό | 1 | 13908605160 | Shop at ECS Tuning | ||||||
| 06 | Σωλήνας αέρα καθαρισμού | 1 | 11158645343 | Shop at ECS Tuning | ||||||
| 07 | Βίδα οβάλ κεφαλής | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Σφιγκτήρας συγκράτησης | D=12-14/B=5 | 1 | 12527578321 | $1.08 | Shop at ECS Tuning | ||||
| 09 | Στήριγμα αγωγού | 2 | 13547714512 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 LCI 330e Βαλβίδα εξαερισμού ρεζερβουάρ?
- This technical diagram illustrates the Βαλβίδα εξαερισμού ρεζερβουάρ within the Προετοιμασία καυσίμου group for the 3 Series F30 LCI 330e produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Βαλβίδα εξαερισμού ρεζερβουάρ (Part #13907643106).
- Which models use the hardware listed in this Βαλβίδα εξαερισμού ρεζερβουάρ?
- The hardware and components featured in the Βαλβίδα εξαερισμού ρεζερβουάρ are specific to the 3 Series F30 LCI 330e produced during 2016. These technical specifications ensure that parts like the Βαλβίδα εξαερισμού ρεζερβουάρ (13907643106) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Βαλβίδα εξαερισμού ρεζερβουάρ assembly?
- Each item in the Βαλβίδα εξαερισμού ρεζερβουάρ corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 330e, you can identify the Βαλβίδα εξαερισμού ρεζερβουάρ by locating its position on the schematic, which then links to the official BMW part number 13907643106 for the Προετοιμασία καυσίμου section.
