Ρεζερβουάρ καυσίμου for BMW 2500-3.3Li 2500

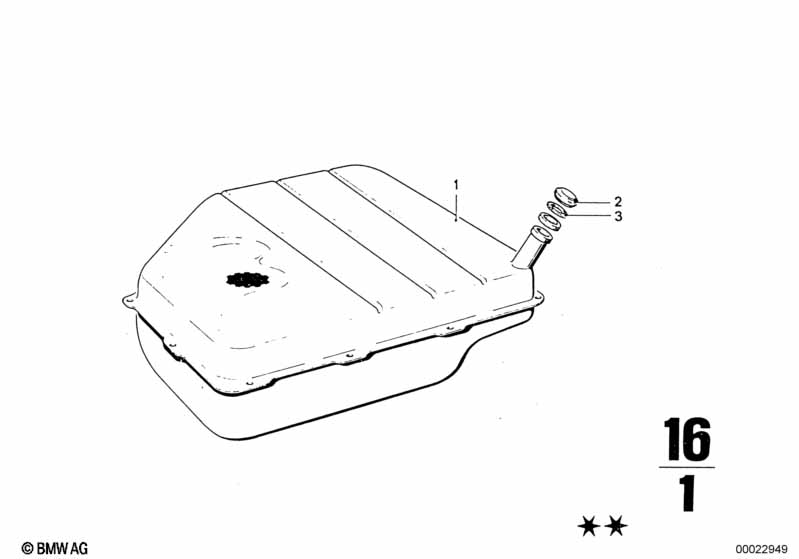

This Ρεζερβουάρ καυσίμου technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Παλαιότερη έκδοση | |||||||||
| 01 | Ρεζερβουάρ καυσίμου | 75 L | 1 | 08/1968 | 02/1977 | 16111110659 | ΛΗΞΗ | Shop at ECS Tuning | ||
| Για οχήματα με Έκδοση χώρας Ιαπωνία |
L807A=Ναι |
|||||||||
| 01 | Ρεζερβουάρ καυσίμου | 75 L | 1 | 16111110660 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 02 | Τάπα ρεζερβουάρ | 1 | 08/1968 | 02/1977 | 16111103704 | $17.30 | ΛΗΞΗ | Shop at ECS Tuning | ||
| Για οχήματα με Έκδοση χώρας Ιαπωνία |
L807A=Ναι |
|||||||||
| 02 | Τάπα ρεζερβουάρ χωρίς κλειδαριά | 1 | 16111118379 | $6.94 | Shop at ECS Tuning | |||||
| 03 | Λάστιχο στεγανοποίησης | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Ρεζερβουάρ καυσίμου?
- This technical diagram illustrates the Ρεζερβουάρ καυσίμου within the Τροφοδοσία καυσίμου group for the 2500-3.3Li 2500. It provides a detailed exploded view of the components, identifying key parts such as the Ρεζερβουάρ καυσίμου (Part #16111110659).
- Which models use the hardware listed in this Ρεζερβουάρ καυσίμου?
- The hardware and components featured in the Ρεζερβουάρ καυσίμου are specific to the 2500-3.3Li 2500. These technical specifications ensure that parts like the Ρεζερβουάρ καυσίμου (16111110659) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ρεζερβουάρ καυσίμου assembly?
- Each item in the Ρεζερβουάρ καυσίμου corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Ρεζερβουάρ καυσίμου by locating its position on the schematic, which then links to the official BMW part number 16111110659 for the Τροφοδοσία καυσίμου section.
