Καταλύτης κοντά στον κινητήρα for BMW 7 Series F02 740Li
This Καταλύτης κοντά στον κινητήρα technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP καταλύτης κοντά στον κινητήρα | ZYL. 1-3 | 1 | 18307594012 | Shop at ECS Tuning | |||||
| Για οχήματα με Έκδοση χώρας Κίνα |
L8AAA=Ναι |
|||||||||
| 01 | RP καταλύτης κοντά στον κινητήρα | ZYL. 1-3 | 1 | 18407612905 | Shop at ECS Tuning | |||||
| 02 | RP καταλύτης κοντά στον κινητήρα | ZYL. 4-6 | 1 | 18307594029 | Shop at ECS Tuning | |||||
| Για οχήματα με Έκδοση χώρας Κίνα |
L8AAA=Ναι |
|||||||||
| 02 | RP καταλύτης κοντά στον κινητήρα | ZYL. 4-6 | 1 | 18407612906 | Shop at ECS Tuning | |||||
| 03 | Σφιγκτήρας ιμάντα V | D=108,4 | 2 | 11658585233 | Shop at ECS Tuning | |||||
| 04 | Στεγανοποίηση στροβιλοσυμπιεστή/καταλύτη | 2 | 18307553601 | $18.21 | Shop at ECS Tuning | |||||
| 05 | Κοχλίας εξαγωνικής κεφαλής | M8X40 A2-70 | 2 | 18307562224 | $2.17 | Shop at ECS Tuning | ||||
| 06 | Συγκρατητήρας καταλύτη κοντάστονκινητήρα | 1 | 18307594011 | Shop at ECS Tuning | ||||||

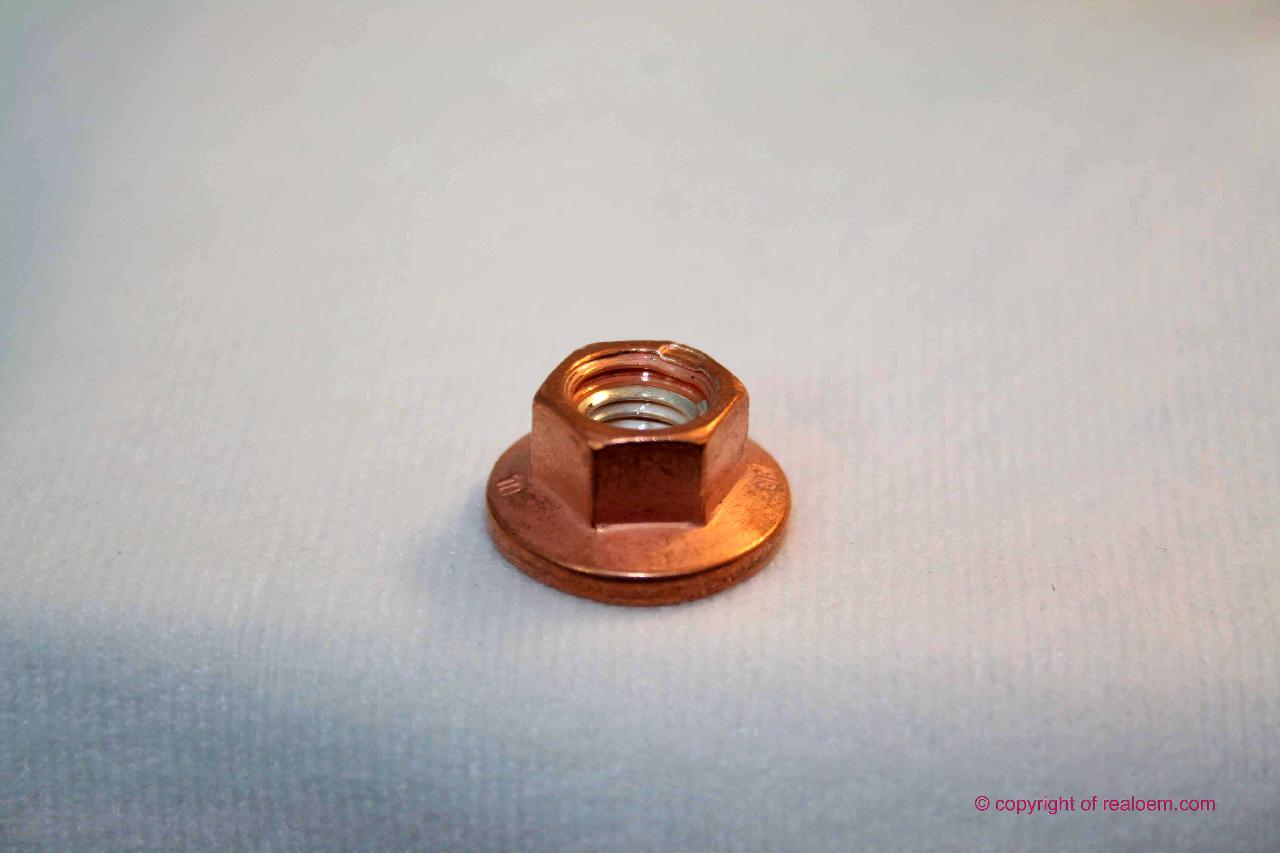

| 07 | Περικόχλιο με πατούρα | M8 | 2 | 10/2009 | 18107523805 | $2.55 | Shop at ECS Tuning | |||
| 07 | Περικόχλιο με πατούρα | M8 | 2 | 10/2009 | 18307597650 | Shop at ECS Tuning | ||||
| 08 | Επίπεδη φλάντζα | 2 | 18307553603 | $18.21 | Shop at ECS Tuning | |||||
| 09 | Περικόχλιο με πατούρα | M8 | 4 | 10/2009 | 11627509731 | $4.18 | Shop at ECS Tuning | |||
| 09 | Περικόχλιο με πατούρα | M8 | 4 | 10/2009 | 18307597650 | Shop at ECS Tuning | ||||
