ZF S5-16 Κέλυφος + πρόσθετα εξαρτήματα for BMW 2500-3.3Li 2500

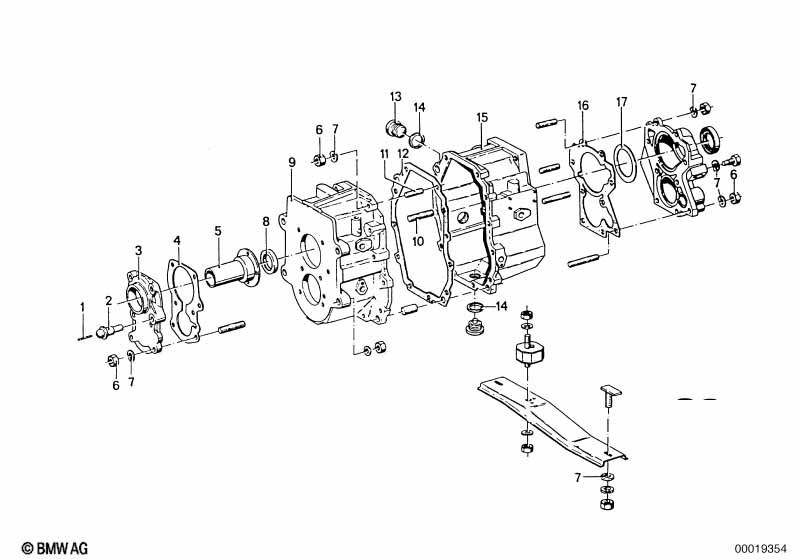

This ZF S5-16 Κέλυφος + πρόσθετα εξαρτήματα technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Τσόχα | 1 | 21511200214 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 02 | Πείρος σφαιρικής κεφαλής | 1 | 21511200182 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 03 | Φλάντζα κεντραρίσματος | 1 | 23111201280 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 04 | Στεγανοποίηση χωρίς αμίαντο | 1 | 23111222329 | $10.34 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 05 | Χιτώνιο οδηγός | 1 | 23211201278 | $46.04 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 06 | Εξαγωνικό περικόχλιο | M8-8-ZNNIV SI | 26 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Ελατηριωτή ροδέλα | 8,4X15-ZNS3 | 29 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Στεγανοποιητικός δακτύλιος | 30X42X7 | 1 | 33122301019 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 09 | Τμήμα κελύφους μπροστά | 1 | 23111201258 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 11 | Ακέφαλος κοχλίας | M8X22 | 9 | 07119908312 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 12 | Στεγανοποίηση χωρίς αμίαντο | 1 | 23111222328 | $8.59 | Shop at ECS Tuning | |||||
| 13 | Κοχλίας φραγής με δακτύλιο-Ο | M22X1,5-ZNS3 | 1 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 14 | Στεγανοποιητικός δακτύλιος | C22X27-CUAS | 2 | 07119963358 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 15 | Τμήμα κελύφους πίσω | 1 | 23111201260 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 16 | Στεγανοποίηση | 1 | 23111201391 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| κατ' επιλογή | ||||||||||
| 17 | Ροδέλα | 1 | 23121201281 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 17 | Ροδέλα | 1 | 23121201282 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 17 | Ροδέλα | 1 | 23121201283 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 17 | Ροδέλα | 1 | 23121201284 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 17 | Ροδέλα | 1 | 23121201285 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 17 | Ροδέλα | 1 | 23121201286 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 17 | Ροδέλα | 1 | 23121201287 | ΛΗΞΗ | Shop at ECS Tuning | |||||
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
