BW 65 συμπλέκτης μπροστά for BMW 2500-3.3Li 3.0S

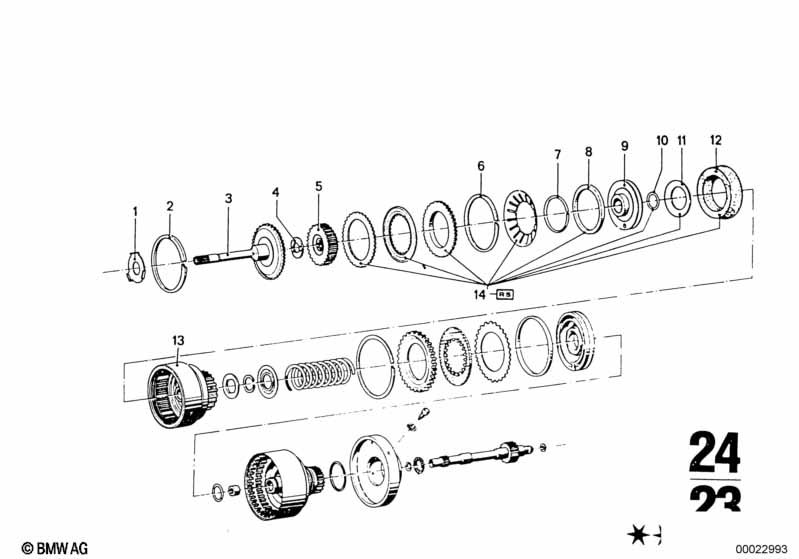

This BW 65 συμπλέκτης μπροστά technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ωστικός δίσκος | BW-65 | 1 | 24421203277 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 01 | Ωστικός δίσκος | 1 | 24421203278 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 02 | Δακτυλίδι ασφαλείας | 1 | 24221203305 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 03 | Κινητήριος άξονας | 1 | 24221203302 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 04 | Ωστικός δίσκος | BW-65 | 1 | 24221203300 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 04 | Ωστικός δίσκος | 1 | 24221203301 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 05 | Φορέας ελασμάτων | 1 | 24221204271 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 06 | Ελατήριο | 1 | 24221203292 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 07 | Ελατηριωτή ασφάλεια | 1 | 24221203290 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 08 | Στεγανοποιητικός δακτύλιος | 1 | 24221203289 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 09 | Έμβολο | 1 | 24221207081 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 09 | Έμβολο | 1 | 08/1971 | 02/1977 | 24221207081 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 10 | Δακτύλιος-Ο | 1 | 24221203288 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 11 | Πιατάκι ελατηρίου | 6 | 24221204267 | $2.40 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 12 | Δακτύλιος | 1 | 24221204269 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 13 | Κύλινδρος | 1 | 24221204254 | $127.22 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 13 | Κύλινδρος | 1 | 08/1971 | 02/1977 | 24221203287 | $127.22 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 14 | Σετ επισκευής δίσκοι συμπλέκτη | 1 | 24221204194 | $148.43 | ΛΗΞΗ | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
