ZF 3HP22 Μηχαν.αλλαγής/μηχαν.κλειδώματος for BMW 2500-3.3Li 3.0S

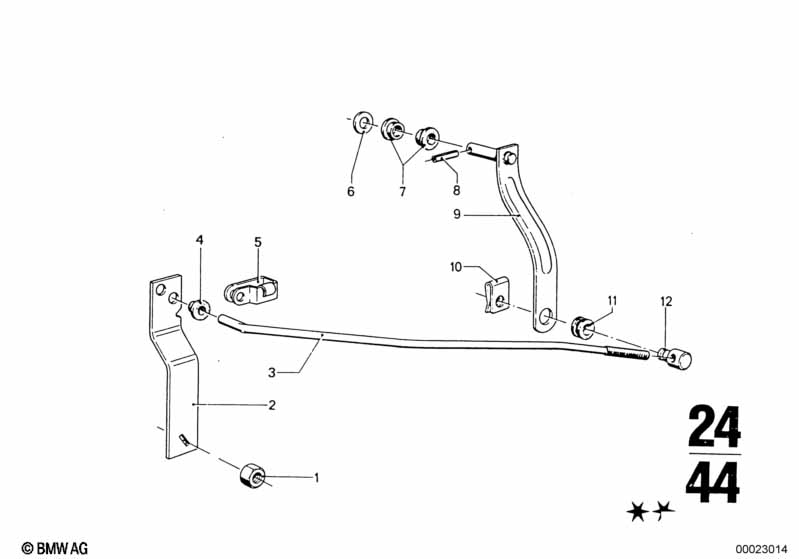

This ZF 3HP22 Μηχαν.αλλαγής/μηχαν.κλειδώματος technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Εξαγωνικό περικόχλιο αυτασφαλιζόμενο | M8X1 | 1 | 07129922770 | $0.24 | Shop at ECS Tuning | ||||
| 02 | Επιλογέας | 1 | 24511205672 | $18.48 | Shop at ECS Tuning | |||||
| 03 | Ράβδος επιλογής | 1 | 25161205637 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 04 | Υποδοχή | 1 | 25161204945 | $0.92 | Shop at ECS Tuning | |||||
| 05 | Ελατήριο συγκράτησης | 1 | 25161208447 | $2.00 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 06 | Ροδέλα αποστάτης | 18X25X1 | 1 | 07119932650 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 07 | Χιτώνιο έδρασης | 2 | 25161204756 | $0.86 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 08 | Πείρος σύσφιξης | 4X28 | 1 | 07119941224 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 09 | Μοχλός αλλαγής ταχυτήτων-κάτω μέρος | 1 | 25161204774 | $29.80 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 10 | Ροδέλα ασφάλισης | 1 | 41621883598 | $0.77 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 11 | Υποδοχή αρθρωτού συνδέσμου | 1 | 25161207836 | $1.27 | Shop at ECS Tuning | |||||
| 12 | Πείρος | 1 | 25161204883 | $6.62 | ΛΗΞΗ | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
