Υδραυλικός μηχανισμός διεύθυνσης for BMW 2500-3.3Li 3.0S

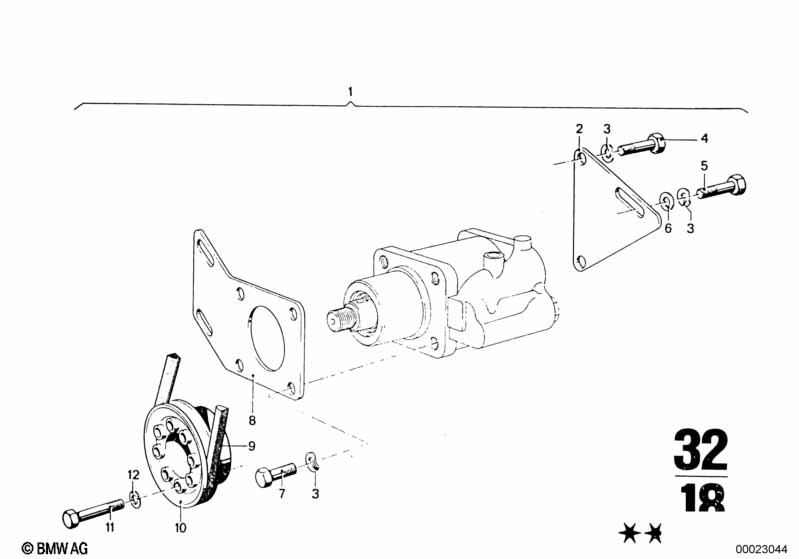

This Υδραυλικός μηχανισμός διεύθυνσης technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Για οχήματα με Σύστημα κλιματισμού |
=Όχι |
|||||||||
| 01 | Σετ μεταγ.τοποθ.μηχαν.κίν.πτερυγ.αντλίας | 1 | 32411259391 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 02 | Πλάκα στήριξης | 1 | 32411265846 | $5.07 | Shop at ECS Tuning | |||||
| 03 | Ελατηριωτή ροδέλα | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Κοχλίας εξαγωνικής κεφαλής | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Κοχλίας εξαγωνικής κεφαλής | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Ροδέλα | 1 | 11614000131 | $1.80 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 07 | Κοχλίας εξαγωνικής κεφαλής | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
| 08 | Πλάκα στήριξης | 1 | 32411276638 | $43.56 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 09 | Τραπεζοειδής ιμάντας | 9,5X888 | 1 | 32421718953 | Shop at ECS Tuning | |||||
| 10 | Τροχαλία ιμάντα | 1 | 32411259343 | ΛΗΞΗ | Shop at ECS Tuning | |||||
| 11 | Κοχλίας εξαγωνικής κεφαλής | M8X45-8.8-ZNS3 | 8 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Ελατηριωτή ασφάλεια | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
