Κολόνα τιμονιού for BMW 2500-3.3Li 3.0S

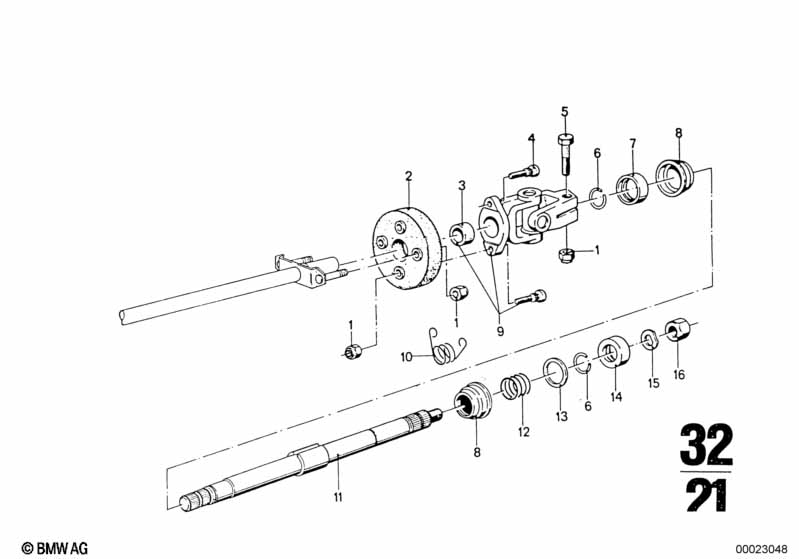

This Κολόνα τιμονιού technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Εξαγωνικό περικόχλιο αυτασφαλιζόμενο | M8-8-ZNNI SI | 5 | 08/1968 | 02/1977 | 07129906196 | $1.60 | Shop at ECS Tuning | ||
| 01 | Εξαγωνικό περικόχλιο αυτασφαλιζόμενο | M8 | 5 | 08/1968 | 02/1977 | 07129922714 | $0.17 | ΛΗΞΗ | Shop at ECS Tuning | |
| 02 | Δίσκος αρθρωτού συνδέσμου | 1 | 08/1968 | 02/1977 | 32311112358 | Shop at ECS Tuning | ||||
| 03 | Υποδοχή | 1 | 08/1968 | 02/1977 | 32311102690 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 04 | Πείρος | 2 | 08/1968 | 02/1977 | 32311117373 | $1.82 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 05 | Κοχλίας εξαγωνικής κεφαλής | M8X40-ZNNIV SI | 3 | 08/1968 | 02/1977 | 07119905549 | $1.05 | Shop at ECS Tuning | ||
| 07 | Δακτύλιος | 1 | 09/1973 | 02/1977 | 32311112959 | $3.83 | Shop at ECS Tuning | |||
| 08 | Έδρανο ατράκτου τιμονιού | 35,10X18,10 | 2 | 32311150601 | $8.49 | Shop at ECS Tuning | ||||
| 09 | Σταυροειδής άρθρωση | 1 | 08/1968 | 02/1977 | 32311111706 | $178.29 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 10 | Ελατήριο | 1 | 08/1968 | 02/1977 | 32311110814 | $34.35 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 11 | Άτρακτος τιμονιού επάνω | 1 | 08/1968 | 02/1977 | 32311103629 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 11 | Άτρακτος τιμονιού επάνω | 1 | 09/1973 | 02/1977 | 32311111729 | $223.20 | ΛΗΞΗ | Shop at ECS Tuning | ||
| 12 | Ελατήριο πίεσης | 1 | 32311101017 | $2.13 | Shop at ECS Tuning | |||||
| 13 | Ροδέλα | 1 | 32311159247 | $0.22 | Shop at ECS Tuning | |||||
| 14 | Δακτύλιος | 14 MM | 1 | 32311120260 | $6.79 | ΛΗΞΗ | Shop at ECS Tuning | |||
| 15 | Ελατηριωτή ροδέλα | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Εξαγωνικό περικόχλιο αυτασφαλιζόμενο | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
