Κινηματικός μηχανισμ.διεύθυνσης/ημίμπαρα for BMW 3 Series E36 325i (1990)

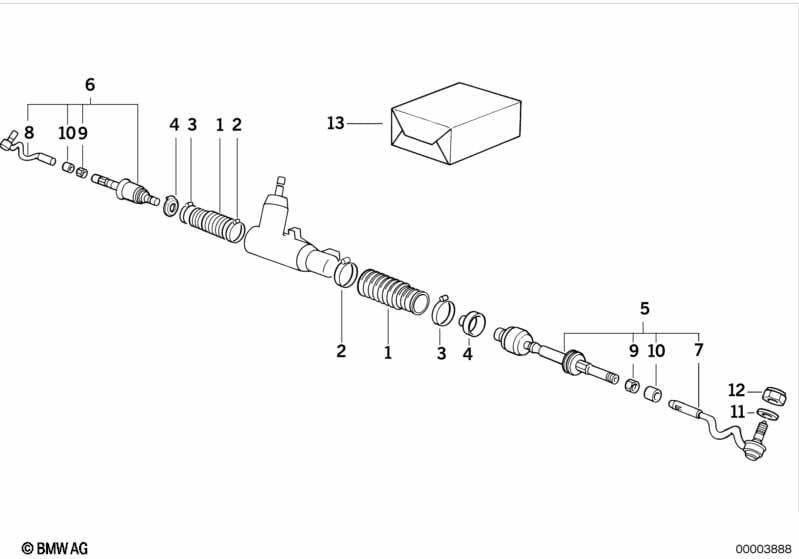

This Κινηματικός μηχανισμ.διεύθυνσης/ημίμπαρα technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | κατάλλ.μόνο για υδραυλικό σύστ.διεύθυνσ. | |||||||||
| 01 | Φούσκα | 2 | 32211139786 | $12.30 | Shop at ECS Tuning | |||||
| 02 | Ιμάντας σύσφιξης | 2 | 32111137132 | $2.40 | Shop at ECS Tuning | |||||
| 03 | Ιμάντας σύσφιξης | 2 | 32131094100 | $2.43 | Shop at ECS Tuning | |||||
| 04 | Έλασμα ασφαλείας | 2 | 32111136526 | $1.18 | Shop at ECS Tuning | |||||
| 05 | Ημίμπαρο αριστερά | 1 | 32111139315 | $129.59 | Shop at ECS Tuning | |||||
| 06 | Ημίμπαρο δεξιά | 1 | 32111139316 | $129.59 | Shop at ECS Tuning | |||||
| 07 | Σφαιρική άρθρωση αριστερά | 1 | 32111139313 | $85.70 | Shop at ECS Tuning | |||||
| 08 | Σφαιρική άρθρωση δεξιά | 1 | 32111139314 | $88.26 | Shop at ECS Tuning | |||||
| Απαιτείται για την επισκευή | ||||||||||
| -- | Δακτύλιος σύσφιξης | 1 | 32111136179 | $4.33 | Shop at ECS Tuning | |||||
| -- | Εξαγωνικό περικόχλιο | M14X1.5 | 1 | 32111136494 | $2.75 | Shop at ECS Tuning | ||||
| -- | Εξαγωνικό περικόχλιο αυτασφαλιζόμενο | M10X1 | 1 | 32216756327 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Εξαγωνικό περικόχλιο | M14X1.5 | 2 | 32111136494 | $2.75 | Shop at ECS Tuning | ||||
| 10 | Δακτύλιος σύσφιξης | 2 | 32111136179 | $4.33 | Shop at ECS Tuning | |||||
| 12 | Εξαγωνικό περικόχλιο αυτασφαλιζόμενο | M10X1 | 2 | 32216756327 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Σετ εξοπλ.μεταγ.τοποθ.αναστολ.γων.διεύθ. | 1 | 32111140479 | $15.25 | Shop at ECS Tuning | |||||
| Προσοχή: Οι οδηγίες τοποθέτησης (EBA) δεν περιλαμβάνονται στο σετ μεταγενέστερης τοποθέτησης. Οι τρέχουσες ενημερωμένες οδηγίες EBA πρέπει να εκτυπώνονται από το Aftersales Assistance Portal (ASAP) και να παραδίδονται στον πελάτη. |
||||||||||
