Φρένο στάθμευσης/μηχανισμός χειρισμού for BMW 1502-2002tii 2002ti (1968)

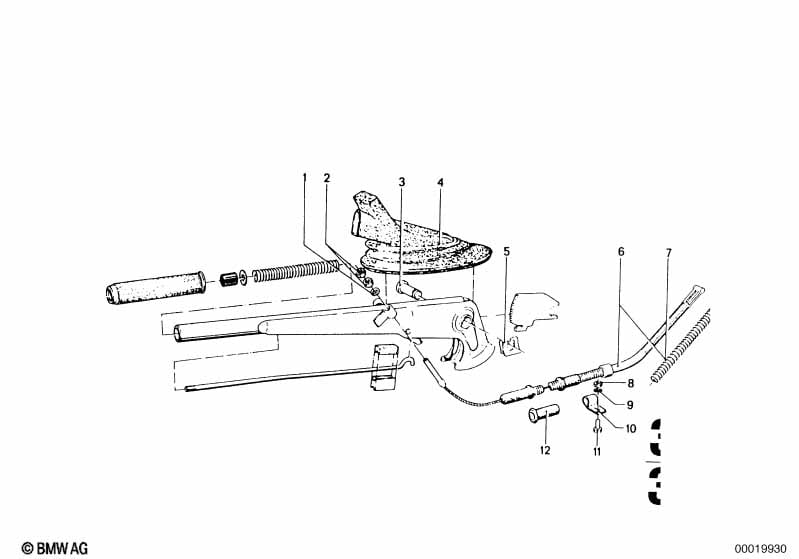

This Φρένο στάθμευσης/μηχανισμός χειρισμού technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| Αρ. | Περιγραφή | Συμπλ. Στοιχεία | Ποσότητα | Από | Έως | Αρ. Ανταλλακτικού | Τιμή | Σημειώσεις | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ροδέλα | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Προστατευτικό κάλυμμα | 1 | 34411101501 | $27.58 | ΛΗΞΗ | Shop at ECS Tuning | ||||
| 06 | Ντίζα Μπόουντεν χειρόφρενου | 2 | 03/1966 | 07/1977 | 34411103128 | $33.08 | Shop at ECS Tuning | |||
| 08 | Εξαγωνικό περικόχλιο | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 09 | Ελατηριωτή ροδέλα | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Σφιγκτήρας | 2 | 34411111039 | $9.02 | Shop at ECS Tuning | |||||
| 11 | Κοχλίας εξαγωνικής κεφαλής | M5X16-SB | 2 | 07119913244 | $0.48 | Shop at ECS Tuning |
Σημειώσεις
- ΛΗΞΗ = Το ανταλλακτικό έχει διακοπεί.
